4-jaw turning chuck SC-4S

stationarylathescroll

Description

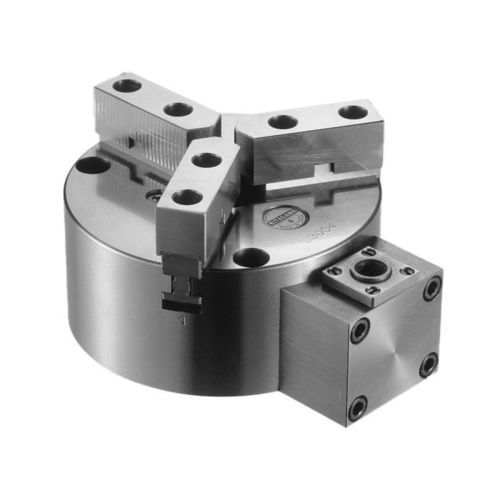

Durable, reliable and versatile stationary scroll chuck by Kitagawa. Manual operation suitable for lathe applications; available mounted on multiplate for straightforward fixture mounting. Compact design and soft top jaws can be machined to fit diverse workpieces.

Key features

• Max. gripping force: 9.6 kN
• Allowable handle torque: 27.5 N·m
• Net weight (with soft top jaws): 4 kg
• External gripping range: 3–95 mm
• Internal gripping range: 29–84 mm

Product specifications

• Models: SC-4S (this model) — SC-5S (variant)
• Max. gripping force (kN): SC-4S 9.6 / SC-5S 12
• Handle torque (N·m): SC-4S 27.5 / SC-5S 39.2
• External gripping range (mm): SC-4S 3–95 / SC-5S 3–110
• Internal gripping range (mm): SC-4S 29–84 / SC-5S 33–100
• Net weight (kg) with soft top jaws: SC-4S 4 / SC-5S 5.3
• Outline drawing / CAD files: PDF, DXF and DWG available for these models

Technical specifications

• Model: SC-4S
• Max. gripping force: 9.6 kN
• Allowable handle torque: 27.5 N·m
• External gripping range: 3–95 mm
• Internal gripping range: 29–84 mm
• Net weight (with soft top jaws): 4 kg
