Grinding steady rest AS235

for grinding machinesfor vertical loading

Overview

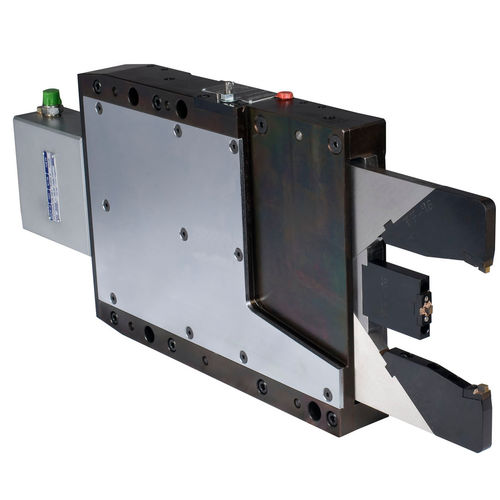

For grinding applications with vertical loading. The Kitagawa AS235 steady rest is designed for hydraulic cylindrical grinding machines where components are loaded vertically.

Key features

• Model / SKU: AS235
• Application: grinding with vertical loading
• Clamping range: 20-35 mm
• Cylinder bore: 40 mm
• Hydraulic connection (BSP): 1/4"
• Standard operating pressure: 4-25 bar
• Centering accuracy over the whole clamping range: 0.002 mm
• Repeatability: 0.01 mm
• Weight approx: 35 kg

Standard features

• Rear-mounted hydraulic cylinder
• Retractable arms for easy vertical loading and unloading
• Carbide pads
• Provision for proximity feedback for maximum opening
• Horizontal adjustment for arms

Applications

• Hydraulic cylindrical grinding machines; vertical-loading production lines; precision component machining
