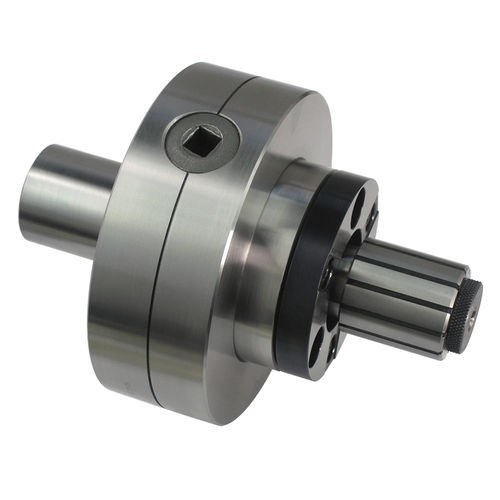

Collet chuck with cylindrical shank KEM-AS-MAkey typeexpanding sleevefor machining
Add to favorites
Compare this product
Characteristics
- Clamping method
- with cylindrical shank, expanding sleeve, key type
- Application
- for machining, for precision engineering
- Other characteristics
- precision, high-precision, manual tightening
- Number of jaws
- 3-jaw
- Clamping range
Max.: 22.4 mm
(0.88 in)Min.: 12.4 mm
(0.49 in)
Description
Overview
Key features
Dimensions (see dimension drawing)
Technical specifications
Recommended use
- Manual expandable collet chuck, model KEM-AS-MA.
- Clamping range: 12.4 mm – 22.4 mm.
- Mounting spigot (positioning spigot): Ø38 mm.
Key features
- Manual actuation via included square drive key; suitable for blind and through holes.
- Uses the same precision mandrels, expansion sleeves and locators as the KEM CNC expandable chucks.
- Can be located and further tightened in a 3-jaw chuck to improve cylindricity and concentricity.
- Universal mounting spigot enables fast transfer between machines and reduces setup time.
- Designed for accurate cylindricity and concentricity in low-to-medium volume production.
Dimensions (see dimension drawing)
- E: 64 mm
- F: 14.5 mm
- G: 22.1 mm
- G (flush): 25.4 mm
Technical specifications
- Model: KEM-AS-MA
- Type: Manual expandable collet chuck
- Clamping range: 12.4 mm – 22.4 mm
- Mounting spigot: Ø38 mm (ground)
- Actuation: lateral, square drive key included
- Compatibility: same mandrels, expansion sleeves and locators as KEM CNC series
- Recommended production: low to medium volume (for high-volume production, use the KEM standard series)
- Accuracy: high cylindricity and concentricity; accuracy may be improved by aligning/tightening in a 3-jaw chuck
Recommended use
- Ideal for small and medium batch production, prototyping and machine-to-machine transfer of ID workholding.
- For continuous high-volume production, consider the KEM CNC expandable chucks.
