Pneumatic rotary table MK200 series

verticalcompactservo-driven

Overview

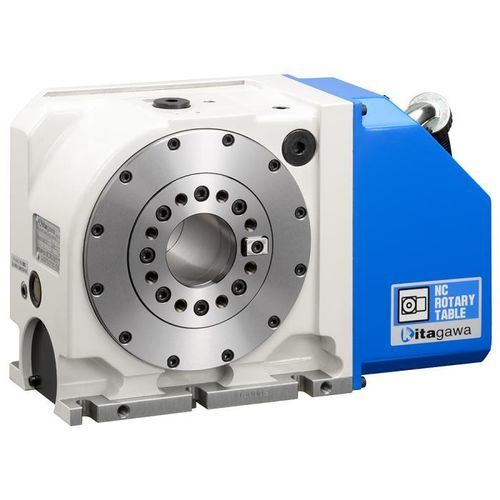

NC rotary table designed for compact integration and precise indexing. Model MK200R/L, table diameter Ø135 mm and maximum faceplate Ø200 mm.

Key features

• Table diameter: Ø135 mm
• Max. faceplate diameter: 200 mm
• Register diameter on faceplate: Ø65H7
• Spindle through hole diameter: Ø70 mm
• Centre height: 140 mm
• Clamping method: Pneumatic
• Clamping torque: 570 N·m (at 0.5 MPa)
• Motor axis reduced inertia: approx. 0.000095–0.00010 kg·m2
• Servo motor (FANUC spec.): αiF4/5000-B
• Total reduction ratio: 1/90
• Max. rotation speed (at motor 3000 min-1): 33.3 min-1
• Allowable cutting torque: 270 N·m
• Allowable work inertia: 1.00 kg·m2
• Indexing accuracy: 20 sec
• Repeatability: 4 sec
• Mass: 60 kg

Options and accessories

• Manual tailstock: MR200RN (option)
• Tail spindle: MSRC140 / MSR142A (option)
• Rotary joint options: compact built-in 4-, 5- and (6+1)-port types; (6+1) centre port includes φ12.5 mm multi-purpose hole for high-pressure coolant or sensors
• 25 MPa high-pressure rotary joints (4- or 6-port) available for fixture miniaturization and fast actuation
• Download formats: 2D (PDF, TIF, DXF, DWG) and 3D (Parasolid, STEP)

Product specifications (excerpt)

• Model: MK200R/L (SKU: MK200)
• Table diameter (mm): ø135
• Centre hole diameter: ø65H7
• Through hole diameter: ø70
• Centre height (mm): 140
• Clamping torque (N·m) (at 0.5MPa): 570
• Max. rotation speed: 33.3 min-1
• Allowable work inertia (kg·m2): 1.00
• Mass: 60 kg
