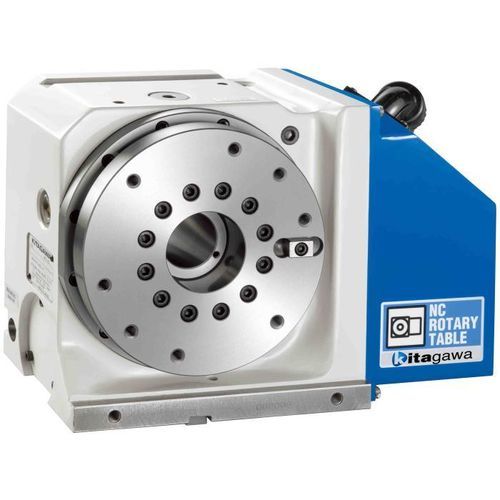

Pneumatic rotary indexing table GT series

verticalfor machine toolsfor heavy loads

Description
The Kitagawa GT-200 rotary table is a through‑hole indexing unit engineered for heavy cutting loads. It features a 200 mm diameter table, a 45 mm spindle through hole and provides up to 41.6 rpm spindle speed for high‑speed indexing. The rigid body design minimises deformation under load and the pneumatic clamping system delivers 820 N·m at 0.5 MPa.

Main specifications

• Brand: Kitagawa
• Model: GT-200
• Table diameter: Ø200 mm
• Centre hole diameter: Ø65 mm (65H7)
• Through hole diameter: Ø45 mm
• Centre height: 140 mm
• Clamping method: Pneumatic
• Clamping torque: 820 N·m (at 0.5 MPa)
• Total reduction ratio: 1/72
• Max spindle speed (4th axis spec., Fanuc): 41.6 rpm (at motor 3000 rpm)
• Indexing accuracy: 20 sec
• Repeatability: 4 sec
• Mass: 65 kg

Key points

• Increased clamping torque obtained by a larger piston area and a redesigned clamping mechanism.
• Rigid body construction reduces deformation during heavy machining operations.
• Brake piston design minimises distortion under load.
• High clamping torque enables higher machining speeds and reduces cycle time.

Options

• Manual tailstock (option): TS200RN or MR200RN
• Tail spindle (option): TSR142-A
• Rotary joint (option): RJ40H20J01 (Hydraulic/Pneumatic 4 ports) and other RJ series
• MAC Mini version: GTM200R40 (optional)

Technical table (summary)
Model: GT200 | GT250 | GT320
Right-handed Type: ○ | ○ | ○
Left-handed Type: ○ | ○ | ○
Table Diameter (mm): ø200 | ø250 | ø320
Centre Hole Diameter (mm): ø65H7 | ø100H7 | ø130H7
Through Hole Diameter (mm): ø45 | ø70 | ø105
Centre Height (mm): 140 | 180 | 225
Clamping Torque (N·m) (at 0.5 MPa): 820 | 1600 | 2800
Motor Axis Reduced Inertia (kg·m²): 0.00023 | 0.00036 | 0.00039
Servomotor (for Fanuc spec.): αiF 4/5000-B | αiF 4/5000-B | αiF 8/3000-B
Total Reduction Ratio: 1/72 | 1/90 | 1/120
Max. Rotation Speed (min⁻¹) 4th axis spec. (Fanuc spec.): 41.6 (at motor 3000 min⁻¹) | 33.3 (at motor 3000 min⁻¹) | 25 (at motor 3000 min⁻¹)
M signal spec.: 41.6 (at motor 3000 min⁻¹) | 33.3 (at motor 3000 min⁻¹) | 16.6 (at motor 2000 min⁻¹)
Allowable Work Inertia (kg·m²): 1.00 | 1.95 | 4.49
Indexing Accuracy (sec): 20 | 20 | 20
Repeatability (sec): 4 | 4 | 4
Mass of Product (kg): 65 | 87 | 145
Allowable Load Horizontal (kg): 200 | 250 | 350
Allowable Load Vertical (kg): 100 | 125 | 180
Manual Tailstock (option): MR200RN | MR250RN | MR320RN
Tail Spindle (option): MSR142A/TSR142A | MSR181A/TSR181A | TSR181A45
Rotary Joint (option): RJ40H20J01 (Hydraulic/Pneumatic 4 ports) | RJ70H25J01 (Hydraulic/Pneumatic 6 ports) | RJ70H32J01 (Hydraulic/Pneumatic 6 ports)
