Rotary table CNC controller QTC200
2-axiswith integrated HMIEtherCAT

Rotary table CNC controller - QTC200 - Kitagawa Europe - 2-axis / with integrated HMI / EtherCAT
Rotary table CNC controller - QTC200 - Kitagawa Europe - 2-axis / with integrated HMI / EtherCAT
Rotary table CNC controller - QTC200 - Kitagawa Europe - 2-axis / with integrated HMI / EtherCAT - image - 2
Add to favorites
Compare this product

Characteristics

Applications
for rotary tables
Number of axes
2-axis
Other characteristics
with integrated HMI, EtherCAT
Communication
RS422/RS485, EtherCAT
Input/output
I/O

Description

Overview

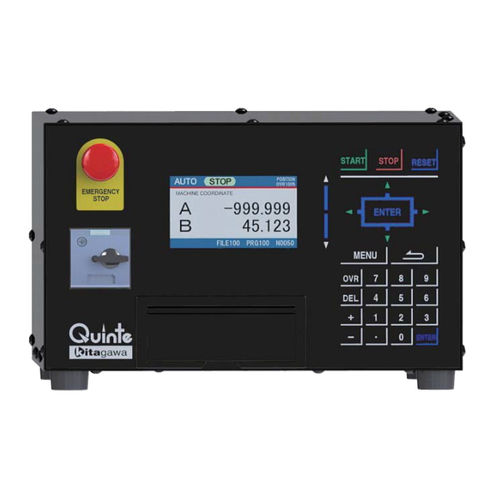

  • Quinte Series QTC200 — controller for 4th and 5th CNC axes (rotary indexing)
  • Controls up to 2 axes with AC servo motors and absolute encoder feedback
  • Designed for rotary tables and multi-axis machining applications


Key features
  • Colour LCD for status and programme information
    • High-resolution TFT colour display (480 × 272) shows current position, running program, motor data and alarms.
  • Program input and management
    • Interactive editing display reduces input errors. Programs and parameters can be uploaded/downloaded via MMC card.
  • High-speed indexing
    • EtherCAT communication reduces indexing time and supports fast synchronisation.
  • Motor selection
    • Multiple AC servo motor options selectable to match machining requirements (e.g., 200W standard, other powers available).
  • Extension I/O and remote options
    • Extension I/O enables external program selection and outputs such as WZRN position and M signals. Optional RS422C interface for remote control.
  • Safety and manual control
    • Emergency stop inputs and outputs, external interlock support, and optional manual pulse generator for jog/step feed.


Further information
  • Model: Quinte QTC200
  • Controlled axes: 2 axis
  • Servo motor: AC servo motor with absolute encoder
  • Setting unit: 0.001°
  • Controlled unit: 0.0001°
  • Max. setting angle: 9999 rotation +360° ±999.999°
  • Equal partition: 0–9999 partitions (sector divisible)
  • Program capacity: Max. program No. 999; 9999 blocks/CH
  • Command method: Absolute / incremental (selectable G90/G91)
  • Zero position return: MZRN and WZRN (external input controllable)
  • Manual feed: Rapid traverse, slow speed feed, step feed
  • EM Stop / Halt: Emergency stop button, forced servo stop via external interlock + master stop; halt via key input or external SP input; two pairs of EM stop outputs
  • Feedrate override: Settable 1–200% (notchable)
  • Preparatory & auxiliary functions: Dwell, lead cutting, buffer, clamp presence, deviation check, interlock start, continuous start, repeating, loop jump, sub-program (M98), absolute/incremental, fin signal control
  • Compensation & limits: Pitch error compensation up to 360 positions; backlash compensation; software limit and over-travel stop (hard limit)
  • Alarm: Alarm number and message display with 100-entry history log
  • Display: TFT colour LCD 480 × 272
  • External I/O signals: Inputs — Start, Stop, External EMG Stop1/2; Outputs — Block complete, EMG Stop outputs, alarm output (B-contact)
  • MMC slot: Program and parameter upload/download


Technical specifications
  • Model: QTC200
  • Series: Quinte Series
  • Controlled axes: 2
  • Communication: EtherCAT (high-speed indexing)
  • Input power: AC200–230V ±10% 50/60Hz (single / 3 phases)
  • Power requirement: 15 A
  • Dimensions (W×H×D): 320 × 190 × 400 mm
  • Weight: 13.0 kg
  • Environment: Operating 0–45°C; storage -10–60°C; humidity 20–80% RH (no condensation); vibration ≤0.5G; shock ≤1G; pollution level 3
  • Options: MMC slot, RS422C I/F (remote), extension I/O, manual pulse generator
  • Standards: CE (EMC), KC
