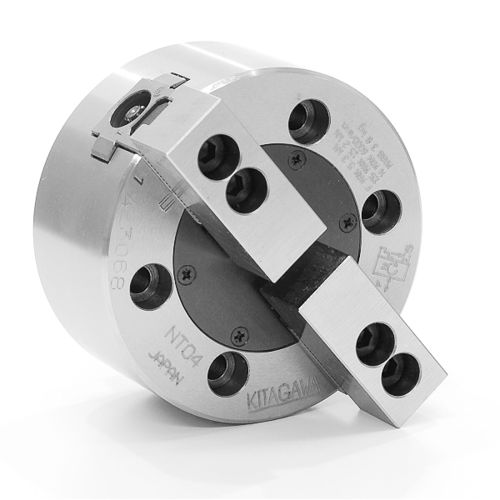

2-jaw workpiece clamping chuck NT04

Overview
2-jaw closed-centre power chuck NT04 Kitagawa designed for clamping square, rectangular and irregular-section workpieces. Gripping range: 5 mm (min) – 110 mm (max).

Main features

• Jaw stroke (diameter): 6.4 mm
• Plunger stroke: 15 mm
• Gripping range: 5–110 mm
• Max draw bar pull force: 5.3 kN
• Max static gripping force: 15.2 kN
• Max speed: 6000 rpm
• Net weight (with soft top jaws): 3.8 kg
• Moment of inertia: 0.007 kg·m2
• Matching cylinder: Y0715R
• Matching soft jaws: SB04A1T
• Max operating pressure: 1.68 MPa

Technical specifications
Model: NT04
Gripping Range (mm) — Max: 110; Min: 5
Jaw Stroke (Diameter) (mm): 6.4
Plunger Stroke (mm): 15
Max. Draw Bar Pull Force (kN): 5.3
Max. Static Gripping Force (kN): 15.2
Max. Speed (min^-1): 6000
Moment of Inertia (kg·m2): 0.007
Net Weight (kg) (with Soft Top Jaws): 3.8
Matching Cylinder: Y0715R
Matching Soft Jaws: SB04A1T
Outline drawings / 2D / 3D CAD files: available on request.

Scope of supply
Chuck with mounting screws, T‑slot blocks and jaw fastening screws.
