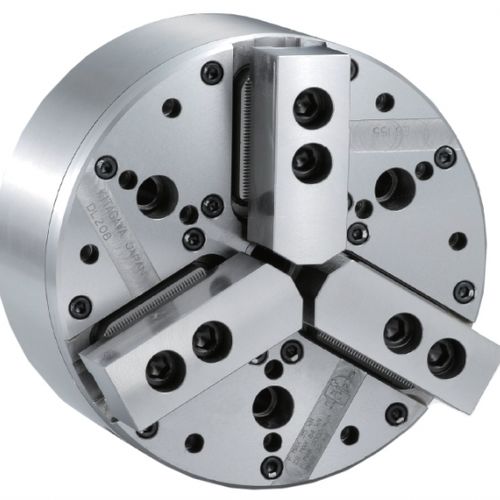

Internal turning workpiece clamping chuck DL206
high-accuracypull-back3-jaw

Internal turning workpiece clamping chuck - DL206 - Kitagawa Europe - high-accuracy / pull-back / 3-jaw
Internal turning workpiece clamping chuck - DL206 - Kitagawa Europe - high-accuracy / pull-back / 3-jaw
Internal turning workpiece clamping chuck - DL206 - Kitagawa Europe - high-accuracy / pull-back / 3-jaw - image - 2
Add to favorites
Compare this product

Characteristics

Application
for internal turning
Other characteristics
pull-back, high-accuracy
Number of jaws
3-jaw
Clamping range

Min.: 25 mm
(0.98 in)

Max.: 140 mm
(5.51 in)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 6,000 rpm
(37,699 rad.min-1)

Description

Key features
  • Three-jaw pull-back action power chuck designed for high-accuracy and volume production.
  • Diameter: 169 mm
  • Through-hole (mm): 20
  • Jaw stroke (diameter mm): 5.8
  • Plunger stroke (mm): 11.5
  • Max speed: 6000 rpm
  • Net weight (with soft jaws): 18 kg
  • Moment of inertia: 0.080 kg·m2
  • Gripping range (standard jaws): Ø25–Ø140 mm
  • Gripping range (optional jaws): Ø25–Ø158 mm
  • Standard jaw type: SB06D1
  • Optional jaw type: SB06B1
  • Matching cylinder: Y1020R
  • Max pressure (MPa): External 2.7 / Internal 1.7
  • Min input (kN): 5
  • Min pressure (MPa): 0.9


Further information
  • Mounting: Recess mount; additional adaptor required.
  • Standard equipment: mounting bolts, T-nuts and jaw mounting bolts. Blank drawnut and mounting wrench included.
  • Compatible with both hard and soft jaws to adapt clamping for different applications.


Technical specifications
  • Model: DL206
  • Type: Three-jaw pull-back power chuck
  • Nominal diameter: 169 mm
  • Through-hole: 20 mm
  • Gripping range (standard): Ø25 (min) – Ø140 (max) mm
  • Gripping range (optional jaws): Ø25 – Ø158 mm
  • Jaw stroke (diameter): 5.8 mm
  • Plunger stroke: 11.5 mm
  • Max input (External): 19 kN
  • Max input (Internal): 12.6 kN
  • Max static gripping force (External): 54 kN
  • Max static gripping force (Internal): 36 kN
  • Max speed: 6000 rpm
  • Net weight (with soft top jaws): 18 kg
  • Moment of inertia: 0.080 kg·m2
  • Matching cylinder: Y1020R
  • Standard jaw type: SB06D1
  • Optional jaw type: SB06B1
  • Max pressure (External / Internal): 2.7 MPa / 1.7 MPa
  • Min input: 5 kN
  • Min pressure: 0.9 MPa
