Workpiece clamping chuck for turning applications JN06

front clampingself-centeringsteel

Product overview

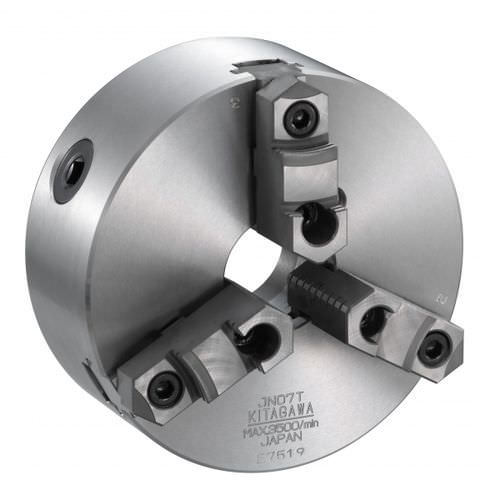

165 mm 3-jaw scroll chuck with recess mount. The Kitagawa JN06 features a steel body to increase rigidity and durability and is designed for manual and NC/CNC lathe applications where a front recess mounting is required. Max rotational speed: 4000 rpm.

Key features

• Max static gripping force: 31 kN
• Max speed: 4000 rpm
• Weight with standard jaws: 8.4 kg
• Moment of inertia: 0.030 kg·m2
• Gripping range (external): 3–160 mm
• Gripping range (internal): 48–150 mm
• Handle torque: 88.3 N·m
• Mount type: recess mount
• Body material: steel

Product specifications
Model: JN06
Mount type: Recess mount
Gripping range (external): 3～160 mm
Gripping range (internal): 48～150 mm
Handle torque: 88.3 N·m
Max static gripping force: 31 kN
Max speed: 4000 min-1
Moment of inertia: 0.030 kg·m2
Net weight: 8.4 kg

Applications

• Manual lathes and NC/CNC lathes requiring a front recess mounting
• Workpieces with a wide external and internal diameter range

Technical details

• Brand: Kitagawa
• Model: JN06
• SKU: jn06
