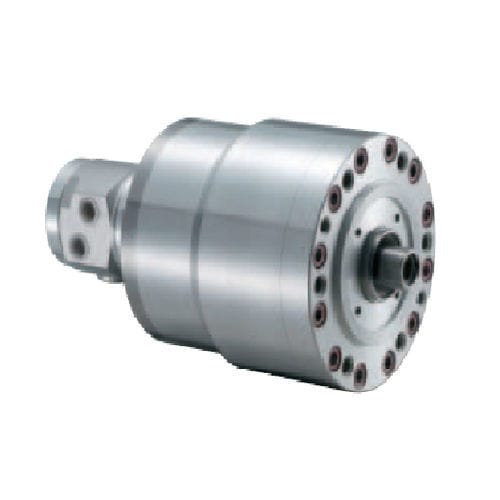

Hydraulic cylinder YW1220R rotarydouble-pistondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Movement
- rotary
- Technology
- double-piston
- Configuration
- double-acting
- Applications
- clamping
- Other characteristics
- compact, integrated, with integrated limit switch, with rotating seal
- Stroke
20 mm
(0.787 in)- Pressure
3 MPa
- Force
31 kN, 33 kN
Description
YW..R double piston cylinder with built-in check valve and pressure relief valve, best suited for HW-series chucks.
Total Leakage (min): 0.7
Max Speed: 5000rpm
Weight (kg): 15.3
Moment of Inertia (kg.m2): 0.043
