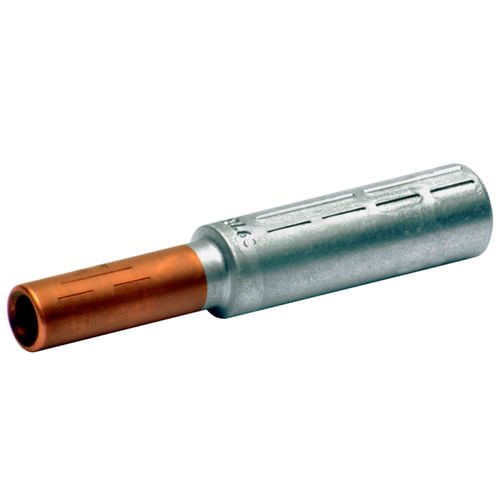

Electrical power supply connector 322R10 - 333R300

DINcrimpbi-metal

For non-tension connections of aluminium conductors to EN 60228 and aluminium cables to DIN EN 50182 For Cu round conductors, e.g. acc. to DIN EN 60228 Cl. 1, 2, 5 and 6 For non-tension copper cables, e.g. acc. to DIN 48201-1 Pipe dimensions acc. to DIN 46267-1 (copper) and DIN 46329 (aluminium) For pre-rounded sector shaped conductors With code number for clear tool assignment Features For connecting non-tension aluminium and copper conductors Easy to process due to crimp markings Simple cable entry due to precise internal chamfer Material E-aluminium Copper (EN13600) Surface Bright Additional information re = round single solid wire, rm = round multi-stranded, se = sector shaped single solid wire, sm = sector shaped multi-stranded, sector shaped conductors must be pre-rounded Assembly instruction Sleeves for compacted conductors and sleeves for 3-core and 4-core cables, see chapter "Sleeves for compacted conductors and sector shaped conductors – Cu"
