Box lift
casevertical

box lift
box lift
box lift
box lift
box lift
box lift
box lift
Add to favorites
Compare this product


Characteristics

Product applications
case, box
Other characteristics
vertical
Carrying capacity

45 kg (99.2 lb)

Lifting height

Max.: 15'00" (4.572 m)

Min.: 0'00" (0 m)

Description

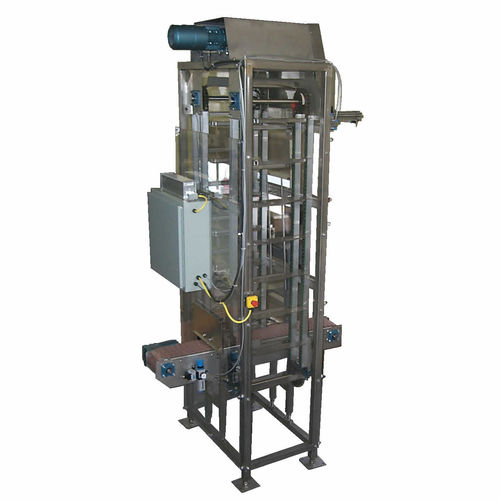

Box and Case Lifts Tackle your product handling challenges with Kleenline's Box and Case Lifts. Kleenline's Box and Case Lifts are ideal for your elevated system challenges. Our vertical-shaft design minimizes required space for inter-level support. In addition, Kleenline's Integral Feed Conveyors can move product as a pass-through or position cases for lifting to another level which is equipped with a pneumatic pusher to discharge product, as required. Dynamic braking controls stop/start while extending motor life. Integral automation controls product movement and programmable settings ensure gentle handling of delicate products. Lexan covers allow safe observation of lift operation. As with all Kleenline systems, custom designs resolve unique or challenging applications while meeting USDA conveyor standards. Standard Specifications - Speeds up to 60 cases per minute - Capacity up to 100 pounds per case - Elevation up to 15 feet - Designs to suit box size Belt Options - Plastic Modular - Wire - Timing Belts - Chain - Urethane Strand - Gravity Rollers - Synthetic Fabric - Table-top Chain Compliance Standards - BISC - USDA - FDA - National Sanitation Foundation - ISN Custom Options - Robotics - Automation Controls - PLC Programming - Drive Type — Brand and Variable Speed - Support Side Rails
