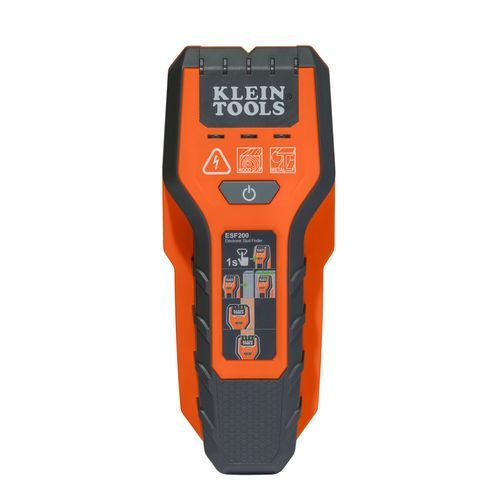

Cable locator ESF200

Product overview
The Klein Tools Multi-Scan stud finder uses an electronic multi-sensor system with LED indicators to locate the center and edges of studs quickly and accurately. Fast auto-calibration and one-handed operation make it suitable for professional trades and on-site use. The unit automatically detects live AC, wood and metal without the need to change modes, while felt backing and protective guards reduce the risk of wall marks during scanning.

Features

• LED indicators display full stud width and edges for clear center and edge locating
• Fast auto-calibration provides reliable results without manual setup
• Automatic detection of live AC wires, wood studs and metal studs (no mode switching required)
• Single-touch power button with green status illumination; auto-shutdown to conserve battery
• Protective guards prevent fingers from rubbing walls during scanning
• Felt backing protects wall surfaces from marks and damage
• Compact, lightweight design fits into tool bags for easy transport

Included

• Stud Finder
• 2 x AAA batteries

Technical specifications

• Type: Stud finder
• Application: Detects metal and wood studs and live wire behind walls; center and edge finding
• Special features: Auto-calibration, felt pads, easy grip
• Magnetic: No
• Level included: No
• Automatic operation: No
• Audible alert: Yes
• Detects metal: Yes
• Detects voltage: Yes
• Detects live wires: Yes
• Display: LEDs
• Scans material: Metal, wood, live wire
• Scan depth: Wood: 0.75'' (1.9 cm); Metal: 1.5'' (3.8 cm); Live wire: 2'' (5.1 cm)
• Overall length: 6.75 in (17.1 cm)
• Overall height: 1.2 in (3 cm)
• Overall width: 2.72 in (6.9 cm)
• Material: PC ABS, electrical components
• Drop protection: 6.5' (2 m)
• Batteries: 2 x AAA (alkaline)
• Weight: 4.9 oz (139 g)
• UPC: 092644695292
