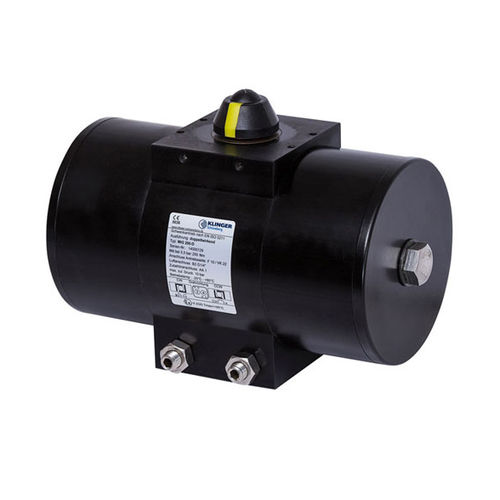

Pneumatic actuator MIG

rotarypistonfor ball valves

MIG - PNEUMATIC RACK & PINION ACTUATORS The actuator concept for the challanges of tomorrow! MIG actuators - single acting / double acting This totally new actuator concept sets new standards in performance and energy management. Up to 40% higher torque with same or smaller construction size and from 40% up to 60% less air consumption compared with the contention. The pneumatic Rack & Pinion actuators, type MIG, revolutionise the control of butterfly valves, ball valves and plug valves. Advantage features Pistons are guided with rods Additional piston guide belts Consistent torque process Suitable for high operation cycles Integral and exterior air supply with very large diameter No slip-stick effect Optimum piston area to pressure ratio Significant increase of performance and torque Considerably improved efficiency Significantly shorter actuation / reaction times 40% to 60% less air consumption No specialised version is needed for quick acting requirement Anti blow out stop screws Rotation angle with +/- 5° adjustable in every end position Less wear and tear while longer life span Complete assembly/disassembly only with two hexagon bolts Maintenance free and easy to assemble
