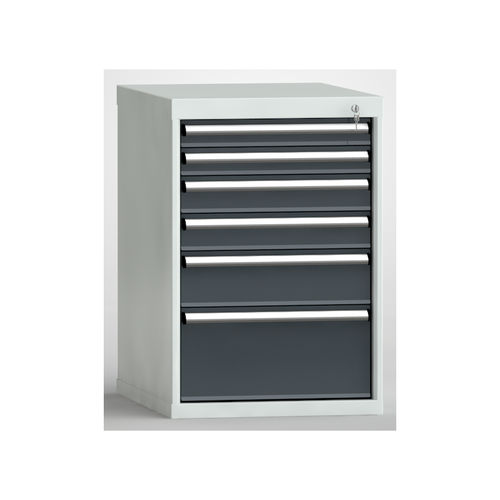

6-drawer tool cabinet SEB 6

Short description
Drawer cabinet H: 850 mm W: 572 mm D: 750 mm. Installation width: 750 mm. Division: 27x36 units. Equipped with central lock and 6 drawers (with slotted grid frame).

Details

• Drawer division: 75/75/100/100/150/250 (compartment widths in mm)
• Available slide types in product range: VN (full extension) / VU (reinforced full extension) / EA (partial extension) — here: full extension (VN) for the listed drawers
• VN: 100% extension, load capacity 75 kg with evenly distributed load
• Slotted grid frame: yes (suitable for divider material)
• Locking: central locking (only one drawer can be opened at a time)
• Number of cabinets: 1

Dimensions & construction

• Height: 850 mm
• Width: 572 mm
• Depth: 750 mm
• Installation width (space for divider material): 750 mm
• Number of drawers: 6

Colors / variants

• Frame/body color: multiple RAL options (e.g. RAL 7035 Light Grey is standard for the shown variant)
• Front color: multiple RAL options (e.g. RAL 7016 Anthracite Grey in the shown variant)
• Various combinations of colors and equipment are available

Usage notes

• The load capacity of the full-extension slides allows safe storage of heavy tools and parts (see slide/load capacity data)
• Central locking prevents multiple drawers from being opened simultaneously (tilt protection)
• A slotted grid frame facilitates using divider material and plastic bins for orderly tool organization

Technical specifications

• Manufacturer model designation: SEB0850-06NP-001 (Item No.: SEB0850-06NP-001)
• Model series: SEB series
• EAN (product variant): 4051152744348
• Height: 850 mm
• Width: 572 mm
• Depth: 750 mm
• Installation width: 750 mm
• Number of drawers: 6
• Drawer compartment sizes: 75 / 75 / 100 / 100 / 150 / 250
• Slide type: Full extension (VN) for the listed drawers
• Load capacity per full-extension slide (evenly distributed): 75 kg
• Slotted grid frame: yes
• Locking: central locking
• Product weight (manufacturer): approx. 103 kg
