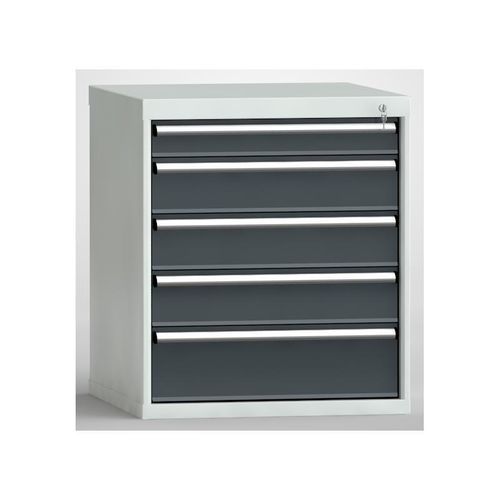

Small parts storage chest of drawers SGB0850-05NP-007

Short description
Drawer cabinet H: 850 mm W: 725 mm D: 750 mm. Installation dimension: 750 mm. Division: 36x36 units. Central locking with 5 drawers (with slot-grid). Drawer configuration: 100VN/150VN/150VN/150VN/200VN. VN = full extension, 100% extraction, load capacity 75 kg (evenly distributed).

Extraction types / Load capacity

• EA (partial extension): 90% extraction, load capacity 100 kg (evenly distributed).
• VN (full extension): 100% extraction, load capacity 75 kg (evenly distributed) — present in this version.
• VU (full extension, heavy): 100% extraction, load capacity 200 kg (evenly distributed).

Delivery / Availability
Ready for shipment in 10 working days. Price: €827.05 incl. VAT (price excl. VAT: €695.00). Shipping and any delivery costs extra according to supplier conditions.

Variants / Colors (excerpt)

• Frame/body color: various RAL options (e.g. RAL 7035 Light Grey, RAL 7016 Anthracite Grey, RAL 3000, RAL 2004, RAL 6011, RAL 5005, RAL 5010, RAL 5012, RAL 5015, RAL 9005).
• Front color: various RAL options (e.g. RAL 7016 Anthracite Grey, RAL 7035 Light Grey, RAL 3000, RAL 2004, RAL 6011, RAL 5005, RAL 5010, RAL 5012, RAL 5015, RAL 9005).
• Combinable selection (example reference: SGB0850-05NP-007 7035/7016).

Key features

• Central lock with single-drawer lock (only one drawer can be opened at a time).
• Slot-grid frame in drawers (suitable for divider material).
• Full-extension double ball-bearing slides (ball-bearing runners) for high load and full extraction.
• Wide color range and many accessory options (base plinths, divider material, top covers, chassis, pallet truck base, edge rolls, etc.).

Difference Standard / Profi (excerpt)
Standard | Profi
No rear panel | With rear panel
40 mm thick top plate | 45 mm thick top plate
Drawers without slot-grid | Drawers with slot-grid

Notes / FAQs (excerpt)

• EA = partial extension (load capacity 100 kg, 90% extraction).
• VN = full extension (load capacity 75 kg, 100% extraction).
• VU = full extension (heavy) (load capacity 200 kg, 100% extraction).
• Central lock = locking mechanism where only one drawer can be opened at a time.

Technical specifications

• Division: 100/150/150/150/200 (drawer/unit arrangement).
• Model / Series: SGB.
• Slot-grid frame: yes.
• Max drawer load (per drawer, at full extension VN): 75 kg (evenly distributed).
• Installation dimension in mm: 750 mm.
• Extraction type: Full extension (VN) 75 kg (in this variant).
• Lock type: Central locking.
• Number of housings: 1.
• Height: 850 mm.
• Number of drawers: 5.
• Width: 725 mm.
• Depth: 750 mm.
• Product weight (meta): 111 kg.
• EAN (product variant): 4051152725347.
