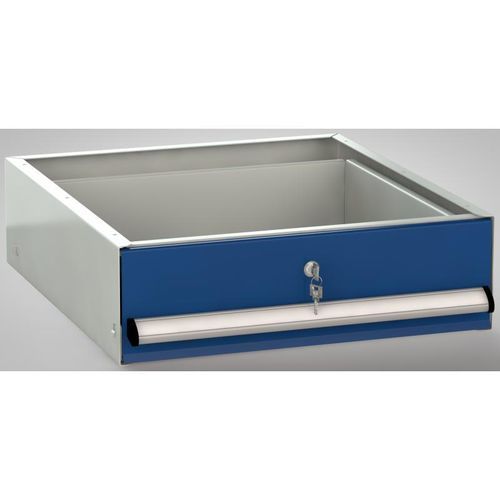

Pull-out drawer ES-BEA-150ES

Short description
Metal drawer with hanger frame for under-counter mounting. Front height 150 mm, lockable. Dimensions approx. 157 x 520 x 590 mm (H x W x D). Mounting hardware included. Ready for dispatch in 10 working days.

Highlights

• Load capacity: 100 kg (evenly distributed).
• Secure storage: Central lock, including 2 keys.
• Easy installation: Suitable for screwing under worktops from 30 mm thickness; mounting hardware included.
• Usable volume: Front height 150 mm; partition layout 27 x 27 units = 445 x 445 mm (W x D) usable dimension.

Technical data (from product description)
Feature — Details
Dimensions (H x W x D) — approx. 157 x 520 x 590 mm
Usable dimensions (H x W x D) — 130 x 445 x 445 mm
Front height — 150 mm
Load capacity — 100 kg (evenly distributed)
Partitioning — 27 x 27 units (without slot grid)
Security — Lockable (incl. 2 keys)
Compatibility — For worktops from 30 mm thickness

Specifications

• Item no. (SKU): ES-BEA-150ES
• EAN: 4051152108058
• Weight (product data): 14.2 kg
• Body height: 120 mm
• Front height (mm): 150 mm
• Total height (mm): 157 mm
• Total width (mm): 520 mm
• Total depth (mm): 590 mm
• Max. drawer load: 100 kg
• Usable dimensions (H x W x D): 130 x 445 x 445 mm
• Alternative height: 133 mm (other internal dims: width 460 mm, depth 460 mm for specific installation sizes)
• Delivery scope: Drawer with hanger frame and mounting hardware, 2 keys
• Note: Suitable for retrofitting under solid worktops; partitioning without slot grid (slot grid optional in other series)
