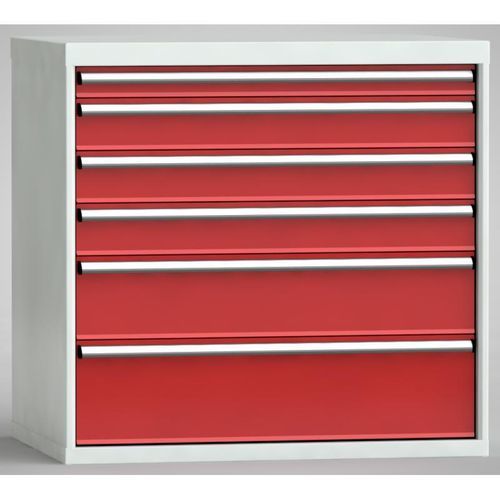

Small parts storage chest of drawers SJB1000-06UP-001

Overview
Drawer cabinet H: 1000 mm W: 1031 mm D: 750 mm
Installation width: 900 mm
Configuration: 54 x 36 units
With central lock and 6 drawers (with slotted grid frame).

Drawer layout

• 75 VU
• 125 VU
• 125 VU
• 125 VU
• 200 VU
• 250 VU

Extension / Load capacity
VU: 100% extension, load capacity 200 kg per drawer with evenly distributed load.

Additional information
- Central locking.
- Slotted grid frame included.

Technical data (table)
Configuration: 75/125/125/125/200/250
Model: SJB1000-06-001
Slotted grid frame: yes
Max drawer load: 200 kg
Installation width (mm): 900
Extension type: full extension 200 kg
Locking: central lock
Number of cabinets: 1
Height: 1000 mm
Number of drawers: 6
Width: 1031 mm
Depth: 750 mm

Characteristics / technical specifications

• SKU: SJB1000-06UP-001
• Model designation: SJB1000-06-001
• Dimensions (H×W×D): 1000 mm x 1031 mm x 750 mm
• Installation width: 900 mm
• Number of drawers: 6
• Drawer division (in VU): 75 / 125 / 125 / 125 / 200 / 250
• Extension type: full extension (VU), 100% extendable
• Load capacity per drawer (VU, evenly distributed): 200 kg
• Slotted grid frame: yes
• Locking: central lock
• Number of cabinets: 1
• EAN: 4051152890700
• Weight (product): 167 kg
• Delivery status: Ready for dispatch in 10 working days
• Price (excl. VAT): €1,342.00
