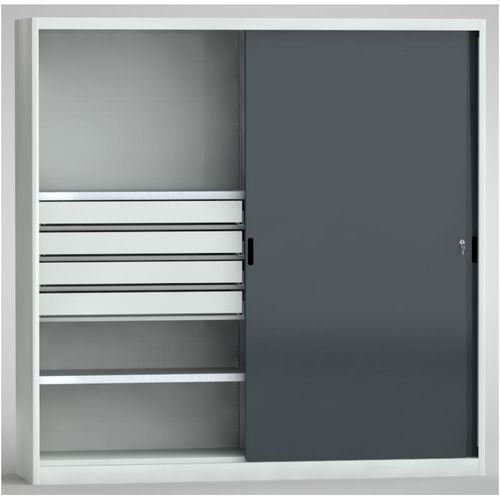

Storage cabinet 7SN-UL2000TB-20S4MRB

workshopfloor-mounted4-drawer

Short description
Maximise organised storage: the large sliding-door cabinet (2000 x 2000 x 525 mm) from KLW Lutz combines space-saving sliding doors with a flexible arrangement of shelves and drawers. Ideal for workshops, warehouses, industrial sites and production facilities.

Product features

• Generous dimensions: 2000 x 2000 x 525 mm (H x W x D) with a solid central partition
• Left side: 4 smooth-running drawers (FH 95 mm, 40 kg load capacity) + 2 galvanized, adjustable shelves
• Right side: 5 galvanized, adjustable shelves for heavy loads
• Space-saving sliding doors: ball-bearing, easy to operate and centrally lockable with a cylinder lock

Key benefits

• Reliable KLW Lutz construction: self-supporting steel sheet design, highly dimensionally stable and torsion-resistant
• Optimally divided storage: fixed central partition creates two full-width compartments with a total of 7 shelves and 4 drawers
• Smooth-running sliding doors: quiet in guide rails, secure central locking (turn-press cylinder lock)
• Durable industrial coating: long-term protection against impacts, shocks and corrosion
• Ready to use: delivered fully welded and completely assembled

Technical data

• Article number: 7SN-UL2000TB-20S4MRB
• External dimensions: 2000 x 2000 x 525 mm (H x W x D)
• Construction: steel sheet with fixed central partition
• Left side equipment: 4 drawers (FH 95 mm, W: 988 mm, 40 kg load capacity) + 2 galvanized, adjustable shelves
• Right side equipment: 5 galvanized, adjustable shelves
• Drawer dimensions: width 988 mm, installation height 100 mm, FH 95 mm (usable units: 50 x 26)
• Doors: easy-running sliding doors with integrated handle strip, centrally lockable
• Surface: impact- and scratch-resistant industrial coating
• Delivery condition: completely assembled and fully welded
• Shelf load capacity: 80 kg (per shelf, with evenly distributed load)
• Max. drawer load: 100 kg
• Number of doors: 2
• Number of drawers: 4
• Height: 2000 mm
• Width: 2000 mm
• Depth: 525 mm
• Weight (product specification): 235 kg
• Special item numbers / EAN: 4051152434621

Frequently asked questions (excerpt)

• Drawer load capacity: The drawers offer 40 kg load capacity each with evenly distributed load.
• Does the cabinet require assembly?: No, the cabinet is delivered factory-welded and fully assembled; shelves only need to be inserted.
• Advantage of sliding doors vs. hinged doors: Sliding doors open within the cabinet footprint and do not project into the room, ideal for narrow aisles and passages.
