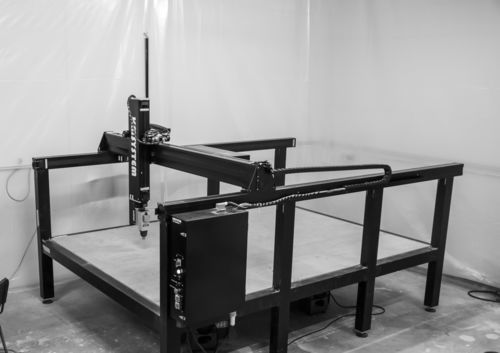

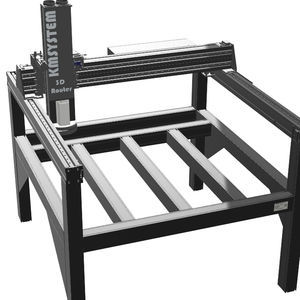

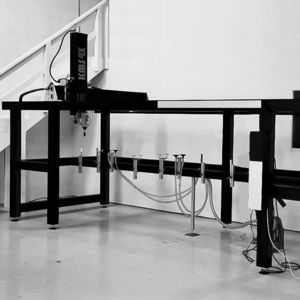

3-axis CNC milling and additive manufacturing machine LOW CNC MACHINING

4-axis5-axis6-axis

For more than 30 years, KMSYSTEM has been designing and manufacturing custom-made CNC machines.
Our CNCs are designed to meet the specific needs of each client. Our goal is to provide tailor-made solutions, tailored to your objectives, to optimize your performance. We help you achieve your goals quickly and accurately, anywhere in the world.


a. Useful shopping

• Useful stroke X: from 1 000 mm to 6 500 mm
• Useful stroke Y: from 500 mm to 2,300 mm
• Useful stroke Z: from 0 mm to 600 mm

b. Dimensions

• Overall length: 1,500 mm to 7,000 mm
• Overall width: from 800 mm to 2 800 mm
• Total height: from 2 200 mm to 3 100 mm
• We offer custom-made dimensions.

c. Profiles

• Ultra rigid KMSYSTEM profiles
• Black Anodized
• 130x105 mm
• Made in France

d. Guidance

• Gear rack and ball screw drive
• Monorail linear guide, ball skate
• Dust protection with teflon tape

e. Machined materials:

• All types of mosses
• Wood
• Plywood
• LAB
• Composite materials
• Plastic
• PET,
• Forex,
• POM,
• Composite materials

f. Software / digital control
The KMSHAPE software and digital control are developed within the company.
The numerical control can support up to 6 simultaneous axes.
Software updates are regularly sent and adapted to each of our clients.
