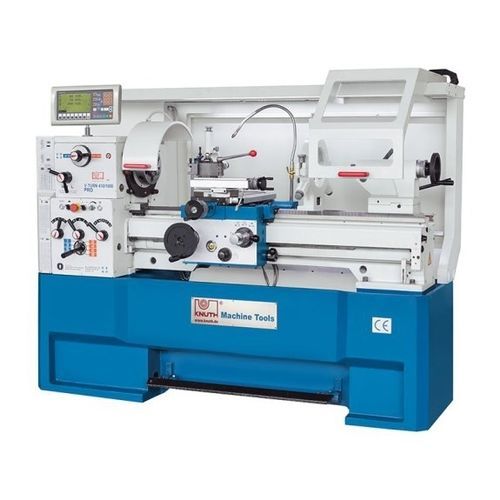

Universal turning machine V-Turn 410 PRO
3-axisCamlock D1-6for large-diameter parts

universal turning machine
universal turning machine
universal turning machine
universal turning machine
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle mount
Camlock D1-6
Applications
for large-diameter parts
Other characteristics
universal, tapping, single-spindle, high-precision, powerful, high-rigidity, flatbed
Diameter

255 mm, 380 mm, 580 mm (10.04 in)

Spindle speed

Max.: 3,000 rpm (18,849.556 rad.min-1)

Min.: 30 rpm (188.496 rad.min-1)

Bar capacity

52 mm (2 in)

Axe X

210 mm (8 in)

Axe Z

140 mm (6 in)

Nominal power

5,500 W (7.5 hp)

Overall width

1,000 mm (39 in)

Overall height

1,500 mm (59 in)

Weight

1,210 kg (2,668 lb)

Description

Our bestseller for workshop applications, production and training purposes • - Turning diameter over bed 380 mm • - Speed range, high 550 - 3.000 1/min • - Spindle bore 52 mm Details • - incl. 3-axis position indicator with integrated spindle speed display, fully assembled • - The redesigned machine enclosure and added safety features make this machine even more ergonomic, complementing functionality and design • - Constant cutting speed: During face turning, the spindle speed automatically adapts to the changing workpiece diameter – the constant cutting speed at the cutting edge of the turning tool ensures superior turning results with quality comparable to CNC lathes • - A heavily ribbed machine bed, rigid headstock and a massive one-piece cast-iron stand form a solid machine base • - Wide, induction-hardened guideways ensure superior turning results and long life • - Facing and top slides feature adjustable guideways and spindle nuts • - High-precision pre-loaded spindle bearings ensure superior concentricity and load capacity • - A powerful 5.5 kW main spindle motor ensures rapid acceleration and powerful chip removal across the entire speed range • - Back-gearing ensures high torque for highly efficient machining • - Rugged feed switch at the support simplifies operation • - The extensive features of the X.Pos Position Indicator are complemented here with a digital speed indicator and an easy to program auxiliary function 3-axis position indicator • - more accuracy • - lower error rate • - increased productivity • - resulting in valuable time savings • - for increased productivity • - easy to read display • - operator-specific features
