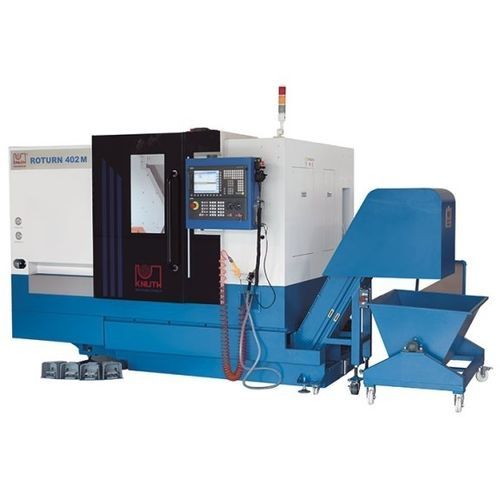

This ROTURN M Series machine has all the features of a classic compact CNC production lathe. Modern, rigid inclined-bed design with linear guides on all axes, powered collet chuck and hydraulically moved tailstock quill. Including C-axis, 12-station tool turret, and driven tools for axial and radial drilling and milling A link conveyor for chip removal and a highly efficient coolant system complete the equipment package. The Siemens 828 D Basic control meets all requirements for advanced control technology.
High-resolution C-axis
Chip conveyor included
Siemens 828 control
Highlights
Future-proof: the Siemens 828 D Basic control meets all requirements for advanced control technology
A hydraulic 3-B chuck with passage is included in the scope of delivery as standard
Hinged belt conveyor and high-performance coolant system included in standard equipment
Machine Design
Heavy machine frame with inclined bed ensuring high rigidity and easy chip removal
Precise linear guides in X and Z for high stability and accuracy even at highest loads
The enclosed work space is easily accessible through a large sliding door
Tailstock with hydraulically operated quill
Automatic central lubrication system ensures reliable lubrication of guideways
Tool Changer
The 12-station tool turret driven tools (BMT) ensures a large work area and quick and precise tool changes
Solid structure and powerful clamping virtually eliminate vibrations resulting in longer tool life
Powerful main drive and a wide speed range for milling, drilling and thread cutting
High-resolution C-axis allows for precise contour cutting and precise positioning
