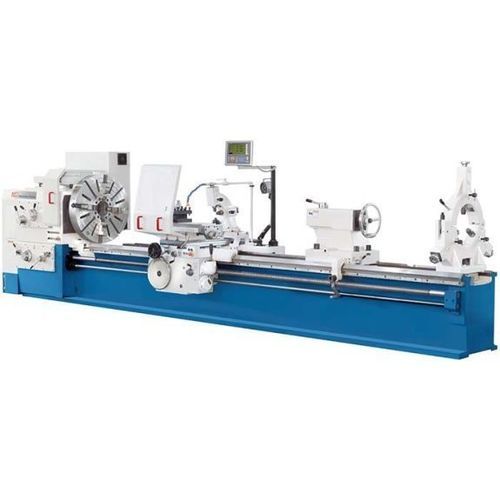

Conventional lathe DL S 515/5000

horizontal3-axisflatbed

Overview
The DL S 515/5000 is a heavy-duty conventional lathe engineered for turning large-diameter and long workpieces. It handles parts up to 5,000 mm between centres and large diameters thanks to an extra-wide, heavily ribbed one-piece machine bed and a robust headstock design. A multi-disc clutch and a manually shifted 4-step gearbox with frequency control allow controlled spindle start-up and precise torque tuning for heavy cutting.

Highlights

• Max between-centers: 5,000 mm
• Spindle bore: 100 mm (A2-11)
• Main motor: 22 kW
• 4-step adjustable spindle speed
• Rapid feeds in X and Z axes
• Mounted 3-axis position indicator

Key features (product details list)

• Extra-heavy, wide machine bed with deep ribs in mono-block construction for high load capacity
• Induction-hardened and ground guideways for long-term accuracy and low wear
• Massive headstock with high-precision main spindle on tapered roller bearings for excellent stability
• 4-step gearbox combined with frequency control and powerful spindle motor for high torque at low rpm
• Joystick control for X and Z feeds mounted on the support for ergonomic operation
• Adjustable overload clutch in apron protects feed mechanics
• Rapid feed for X and Z axes for faster support positioning
• Support and top slide sized for high cutting forces
• Display functions: separate and differential/cumulative readout for top (Z0) and bed slide (Z1); resolution 0.01 / 0.005 mm; storage for 10 tools; radius/diameter toggle; mm/inch conversion; hole circle calculation; calculator

Working area
Workpiece length (max.): 5,000 mm
Turning diameter over bed: 1,000 mm
Turning Ø over support: 720 mm
Turning diameter over gap bridge: 1,350 mm
Workpiece weight (max.): 4,000 kg
Gap bridge length: 470 mm
Bed width: 600 mm

Travels
Travel X-axis: 520 mm
Travel Z-axis: 4,700 mm
Travel Z1-axis: 250 mm
Swing range of top slide: 90°

Headstock
Spindle speed range: 5 1/min - 630 1/min
Spindle bore: 100 mm
Spindle mount: A2-11

Rapid feed
Rapid feed X-axis: 1,800 mm/min
Rapid feed Z-axis: 3,640 mm/min

Feed
Feed speed X-axis: 0.04 mm/min - 4.8 mm/min
Feed speed Z-axis: 0.08 mm/min - 9.6 mm/min
Feed speed Z1-axis: 0.02 mm/min - 2.4 mm/min

Tooling
Tool shank dimensions: 32 mm x 32 mm

Threading
Threading, metric: (53) 1 - 120 mm
Threading, inch: (49) 30 - 1/4
Threading, diametral: (56) 60 - 0.5 DP
Threading, module: (54) 0.5 - 60 mm

Tailstock
Tailstock quill diameter: 120 mm
Tailstock taper: 6 MT
Tailstock quill stroke: 250 mm

Drive capacity
Motor rating main drive: 22 kW
Motor rating coolant pump: 0.15 kW
Motor rating feed: 1.1 kW
Total power consumption: 23 kVA

Measures and weights
Overall dimensions (L x W x H): 7.15 m x 1.5 m x 1.6 m
Weight: 9,500 kg

Technical specifications (extract)

• Model: DL S 515/5000
• Series: DL S
• Workpiece length (max.): 5,000 mm
• Turning diameter over bed: 1,000 mm
• Turning Ø over support: 720 mm
• Turning diameter over gap bridge: 1,350 mm
• Workpiece weight (max.): 4,000 kg
• X-axis travel: 520 mm; Z-axis travel: 4,700 mm; Z1-axis travel: 250 mm
• Spindle speed range: 5 - 630 1/min; Spindle bore: 100 mm; Spindle mount: A2-11
• Rapid feed X/Z: 1,800 / 3,640 mm/min
• Feed ranges X/Z/Z1: 0.04–4.8 / 0.08–9.6 / 0.02–2.4 mm/min
• Tool shank: 32 x 32 mm
• Main motor: 22 kW; Total power consumption: 23 kVA
• Dimensions (L x W x H): 7.15 m x 1.5 m x 1.6 m; Weight: 9,500 kg
