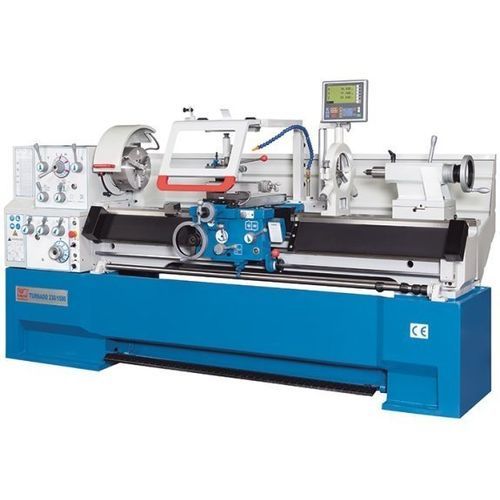

Conventional lathe Turnado 280/1500

horizontal3-axisuniversal

Product overview
The Turnado 280/1500 is a conventional universal lathe designed for general turning, drilling and threading tasks in industrial workshops. It features a heavy one-piece cast bed, a powerful main drive and a modern 3-axis position indicator. The machine is supplied with a quick-change toolholder system and a comprehensive standard accessory package, making it adaptable to a wide range of production requirements.

Highlights

• Classic, durable design with heavy cast bed
• 3-axis position indicator for precise turning operations
• Wide spindle bore and large turning capacities
• Extensive standard equipment and thread/feed options

Headstock / feed gear

• Powerful main motor with stepped gears for high torque and broad speed range
• Hardened and ground gears and shafts running in an oil bath
• Large spindle bore (80 mm) and Camlock D1-8 spindle mount
• High-quality spindle support engineered for rigidity and preload
• Included 3-jaw and 4-jaw chucks and large face plate
• User-friendly control panel on the headstock
• Feed gearbox with many thread leads for metric and Whitworth threads

Support

• Extra-wide carriage designed to absorb high cutting forces
• Control lever for feed selection and apron nut with safety interlock
• Stop spindle with four adjustable cams for automatic feed shut-off
• Micrometer bed stop for precise travel limitation
• Central slip coupling on the apron for easy adjustment of automatic feed
• Thread gauge and support to simplify interrupted tapping and multi-lead threads
• Swiveling top slide with large, easy-to-read scale
• Large swiveling safety cover on the support and centralized lubrication

Tailstock

• Tailstock quill with clear scale and long stroke (180 mm)
• Large quill diameter (75 mm) and 5 MT taper
• Lateral tailstock adjustment for machining conical shafts

Accessories included / standard package

• 3-axis position indicator X.Pos 3.2
• Quick-change toolpost system with tool cartridge
• 3-jaw and 4-jaw chucks, face plate
• Steady and follow rests
• Coolant system and integrated LED work light
• Micrometer longitudinal stop and thread gauge
• Foot brake pedal, fixed splash guard and protective shield for toolpost
• Extensive operating tools and tool kit

Technical specifications

• Max workpiece length: 1428 mm
• Turning Ø over bed: 560 mm
• Turning Ø over support: 355 mm
• Turning Ø over gap: 785 mm
• Bridge length: 170 mm
• Bed width: 350 mm
• Center height: 280 mm
• X-axis travel: 316 mm
• Z1-axis travel: 130 mm
• Top slide swivel: ±52°
• Spindle speeds (12-step): 25 - 1600 rpm
• Spindle bore: 80 mm
• Spindle mount: Camlock D1-8
• Spindle taper: 7 MT
• Feed X-axis: 0.02 - 0.573 mm/rev
• Feed Z-axis: 0.059 - 1.646 mm/rev
• Metric threading: 0.2 - 14 mm
• Tailstock quill stroke: 180 mm
• Main drive motor: 7.5 kW
• Dimensions (L x W x H): 2.84 m x 1.15 m x 1.34 m
• Weight: 2370 kg
