Conventional lathe Basic Plus

horizontal2-axisprecision

Overview

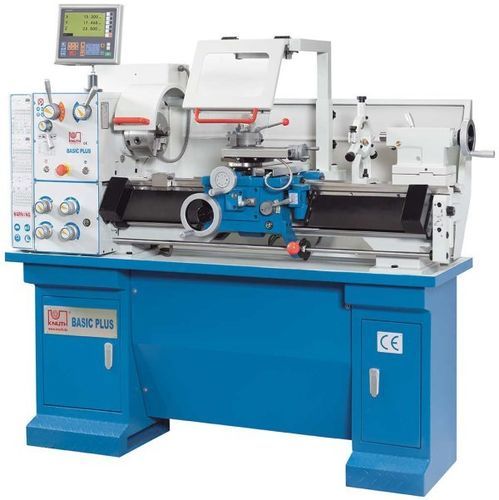

The Basic Plus is a manual bench lathe for single-part production, maintenance and training applications. It can be configured with a wide range of optional accessories to suit repair shops, vocational training centers and general-purpose workshops.

Highlights

• Precision cast-iron bed with double V guide
• Compact footprint for limited workshop space
• Quick-change tool holder with 0.01 mm repeatability
• Assembled 3-axis position indicator X.Pos 3.2 (digital readout)
• Extensive standard equipment and optional accessories

Standard equipment (selection)

• Hardened and ground headstock gears
• Headstock with Camlock D1-4 mount, spindle bore Ø 38 mm
• Adjustable tapered roller headstock bearings
• Tailstock with 100 mm quill stroke and ±10 mm transverse adjustment
• Reversing gearbox for feed direction change
• Quick-action tool holder
• 3-jaw chuck Ø160 mm and 4-jaw face plate Ø200 mm (as delivered)
• Steady and follow rests, micrometer stop, thread gauge
• Protective shields with interlock, work light and toolbox

Technical specifications
Working area
Center width: 810 mm
Turning diameter over bed: 300 mm
Turning Ø over support: 178 mm
Bed width: 180 mm

Travels
X-axis travel: 155 mm
Z1-axis travel: 95 mm
Top slide swing range: ± 60°

Headstock
Spindle speed: 60 - 1550 (9x2) 1/min
Spindle bore: 38 mm
Spindle mount: Camlock D1-4
Spindle taper: MT5

Feed
Feed X-axis: 0.014 mm/rev - 0.38 mm/rev
Feed Z-axis: 0.052 mm/rev - 1.392 mm/rev

Threading
Metric: (26) 0.4–7 mm
Whitworth: (34) 4–56 TPI

Tailstock
Quill diameter: 32 mm
Quill taper: MT3
Quill stroke: 100 mm
Traverse adjustment: ± 10 mm

Drive
Main motor rating: 1.1 kW

Dimensions and weight
Overall (L×W×H): 1.6 m × 0.75 m × 1.27 m
Weight: 520 kg

Notes
The machine is supplied with comprehensive standard equipment and many optional accessories (chucks, holders, measuring devices, coolant systems, etc.).

Specifications

• Model: Basic Plus
• Brand: KNUTH
• Center width: 810 mm
• Turning diameter over bed: 300 mm
• Spindle bore: 38 mm (Camlock D1-4)
• Spindle speeds: 60 - 1550 1/min (9x2)
• Main motor: 1.1 kW
• Tailstock quill stroke: 100 mm, taper MT3
• X travel: 155 mm — Z1 travel: 95 mm
• Feeds X/Z ranges: X 0.014–0.38 mm/rev, Z 0.052–1.392 mm/rev
• Bed: cast iron, double V guide, hardened and ground
• Overall dims (L×W×H): 1.6 m × 0.75 m × 1.27 m
• Net weight: 520 kg
