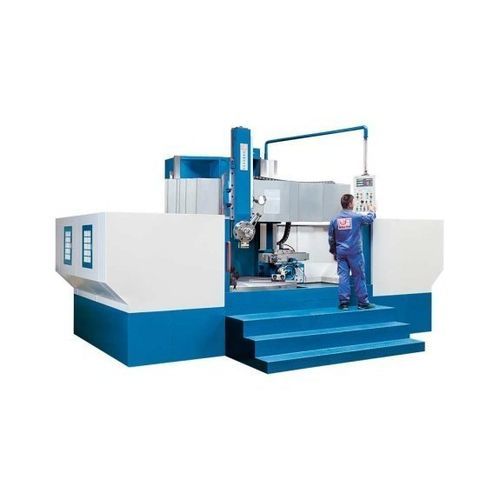

Conventional lathe VDM 2600 S

vertical3-axisservo-driven

Overview
The VDM 2600 S conventional vertical lathe is engineered for machining large-diameter, heavy workpieces. The design facilitates safe, efficient loading/unloading by crane or forklift. A high-torque servo motor drives the feeds and a hydraulic system clamps the crossbeam. The main spindle with reduction gear delivers high torque for heavy cutting; a side support with independent feed is available for outer-contour machining. A 3-axis position indicator is fitted as standard to ensure precision.

Highlights

• Optimised handling for crane and forklift access
• Infinitely variable feed control via high-torque servo motor
• Long, rigid vertical boom with hardened guideways
• Side support with dedicated feed for external contour machining
• Reduction-gear main drive for high spindle torque
• 3-axis position indicator included as standard

Working area (technical table)
Rotating diameter (max.): 2.600 mm
Turning diameter of upper tool holder: 2.600 mm
Turning diameter of side tool holder: 2.300 mm
Machining height (max.): 1.500 mm
Swivel range of upper tool holder: ± 30°
Workpiece length (max.): 1.500 mm
Workpiece weight (max.): 10.000 kg

Travels (technical table)
Travel X1 axis, upper support: 1.300 mm
Travel Z1 axis, upper support: 1.000 mm
Travel W-axis, traverse: 1.100 mm
Travel X2 axis, side support: 730 mm
Travel Z2 axis, side support: 1.180 mm

Headstock (technical table)
Speed range: 1.4 1/min - 45 1/min
Spindle torque (max.): 32.000 Nm
Rotary table diameter: 2.300 mm

Rapid feed (technical table)
Rapid feed of upper support: 1.800 mm/min
Rapid feed of side support: 1.800 mm/min

Feed (technical table)
Feed speed X-axis: 0.8 mm/min - 86 mm/min
Feed speed Z-axis: 0.8 mm/min - 86 mm/min
Feed speed W-axis: 440 mm/min

Tooling (technical table)
Tool holder: 30 mm x 40 mm
Tool weight max.: 50 kg

Drive capacity (technical table)
Motor rating main drive: 37 kW
Motor rating X-axis: 4.7 kW
Motor rating Z-axis: 4.7 kW

Measures and weights (technical table)
Overall dimensions (L x W x H): 7.9 m x 5.3 m x 5.4 m
Weight: 27.500 kg

Product details

• Infinitely variable feed control via servo motor for powerful, stepless boom feed
• Easy access for cranes and forklifts; optimised fixturing for heavy parts
• Heavy-duty column with wide, hardened guideways for high rigidity
• Hydraulic clamping of cross traverse
• Spindle running in high-precision two-row roller bearings, adjustable
• Reduction-gear drive ensuring high torque and wide speed range
• Side support available with independent feed for outer-contour machining

Technical specifications

• Model: VDM 2600 S
• Rotating diameter (max.): 2.600 mm
• Rotary table diameter: 2.300 mm
• Machining height (max.): 1.500 mm
• Max. workpiece weight: 10.000 kg
• Max. workpiece length: 1.500 mm
• Spindle torque (max.): 32.000 Nm
• Speed range headstock: 1.4 – 45 1/min
• Main drive motor rating: 37 kW
• X/Z axis motor rating: 4.7 kW
• Feed speeds X/Z: 0.8 – 86 mm/min
• Rapid feed upper/side support: 1.800 mm/min
• Tool holder size: 30 x 40 mm
• Max. tool weight: 50 kg
• Overall dimensions (L x W x H): 7.9 m x 5.3 m x 5.4 m
• Machine weight: 27.500 kg
