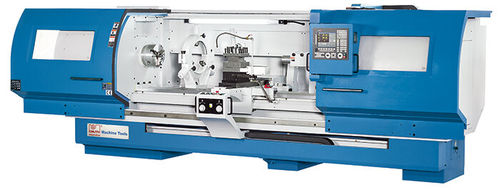

CNC lathe Forceturn 800.15

horizontal2-axisflatbed

Description
Our Forceturn series provides a flat-bed CNC lathe solution for machining large, heavy workpieces up to 5,000 mm in length. The robust flat-bed design and oversized hardened, ground guides deliver high rigidity and precision for heavy-duty turning operations. The user-friendly Fagor control supports teach-in and cycle programming; two electronic handwheels enable manual-style positioning and fast setup. A range of options allows configuration for maintenance departments, single-part production or small batch runs.

Highlights

• Powerful main drive for heavy machining
• Servo-driven 4-station tool changer
• Two electronic handwheels for manual operation and setup
• Cycle programming and graphical simulation for series production

Machine design

• Flat bed with large hardened, ground and counter-laminated guides for high rigidity and precision
• Main drive capable of handling workpiece weights up to 1.7 t (depending on version)
• High-performance coolant system and automatic central lubrication included
• Spindle bore: 85 mm (models 630) or 105 mm (models 800)

Spindle & main gear

• Infinitely variable, programmable spindle speeds with automatic 3-step main gear
• Main drive motor options: 15 kW (continuous) / 22 kW (peak)

Tool changer

• Heavy-duty automatic 4-station servo-driven tool changer for programmed tool changes

Controls & operation

• Fagor control with intuitive cycle programming and Profile Editor for batch and single-part production
• Graphical simulation for safe setup and verification
• Compact control unit with two electronic handwheels for manual operation and quick setup

Technical specifications

• Turning diameter over bed: 818 mm; Bed width: 450 mm; Center height: 420 mm; Turning Ø over support: 570 mm; Max. workpiece length: 1,600 mm
• Travels: X-axis: 450 mm; Z-axis: 1,500 mm
• Headstock: Speed range: 20 - 1,500 rpm; Spindle mount: A1-11; Spindle bore: 105 mm
• Rapid feed: X/Z axes: 5,000 mm/min
• Tooling: Number of tool stations: 4 positions
• Accuracies: Positioning X/Z: 0.015 mm; Repeatability X/Z: 0.007 mm
• Tailstock: Taper: 5 MT; Quill diameter: 105 mm; Quill stroke: 170 mm
• Drive capacity: Main drive motor rating: 22 kW; Main drive continuous load: 15 kW; Motor X: 2 kW; Motor Z: 3.6 kW; Total power consumption: 40 kVA
• Dimensions & weight: Overall (L x W x H): 4 m x 2.25 m x 2.25 m; Weight: 4,500 kg
