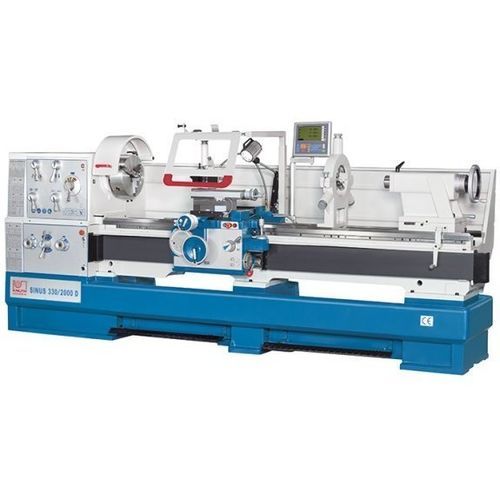

Manual lathe Sinus 400/1500 D

horizontal2-axisuniversal

Product overview
Sinus D is the largest series in the universal lathes segment. The design follows a classic layout based on a heavy one-piece cast machine bed. Power transmission between motor and spindle is via a manual multi-plate clutch. Integrated functions such as a removable bed bridge, rapid traverse and a taper turning device enable optional solutions for machining long workpieces or large flanges.

Highlights

• One-piece heavy-duty cast bed for increased rigidity
• Sturdy headstock with large spindle bearings
• Rapid feed on 2 axes for fast positioning
• Taper turning attachment for additional applications
• Well-designed safety and overload protection

Machine bed
Maximum stability: the machine rests on a heavy, generously dimensioned bed on a solid one-piece cast base frame to effectively reduce vibrations.
Lasting accuracy: bed guideways are induction hardened and ground (>HB 400) to ensure long-term precision and low wear.

Headstock and feed gear
Precision under load: the headstock design ensures high accuracy and smooth running even at high cutting rates.
Large spindle bore: 105 mm spindle bore suits machining of long shafts and pipes.
Proven drive: mechanical multi-plate clutch provides smooth spindle start-up, ideal for accelerating heavy workpieces.

Support
Reduced non-productive time: the support can be moved in both longitudinal and transverse directions in rapid traverse to increase productivity.
Operator protection: integrated overload protection for the feed screw and lead screw prevents damage from incorrect operation or collisions.
Protected design: the lead screw is covered to minimize wear caused by chips and contamination.

Tailstock
Tailstock quill fitted with a robust, easy-to-read scale.
Long quill stroke allows complex drilling and centering operations.
Lateral adjustment of the tailstock enables machining of conical shafts between centers.

Equipment and accessories (standard items included)

• Central lubrication system on the support supplying all guideways
• Taper turning device included as standard (enables long/slim tapers in a single pass with automatic longitudinal feed)
• Quick change between cylindrical and taper turning without readjusting top slide or tailstock
• Foot brake pedal
• Large stable splash guard at rear
• Bright LED lighting integrated into the support cover
• Multifunctional quick-change tool holder system with change cassette
• Fixed and traveling steady rests (standard accessories) for long workpieces
• Latest generation position indicators as standard
• Coolant system and comprehensive operating tools

Technical specs (summary)
Model: Sinus 400/1500 D
Working area — Workpiece length (max.): 1.500 mm
Turning diameter over bed: 800 mm
Turning diameter over support: 570 mm
Turning diameter without gap bridge: 1.035 mm
Gap bridge length: 330 mm
Bed width: 400 mm
Travels — Travel X-axis: 420 mm
Travel Z1-axis: 230 mm
Swing range of top slide: 70°
Headstock — Spindle speed: 25 1/min - 1.600 1/min
Spindle bore: 105 mm
Spindle mount: D1-8
Spindle taper: ø 113 mm / 1:20
Rapid feed — Rapid feed X-axis: 2.000 mm/min
Rapid feed Z-axis: 4.000 mm/min
Feed — Feed X-axis: 0,022 mm/R - 0,74 mm/R
Feed Z-axis: 0,044 mm/R - 1,48 mm/R
Threading — Metric: 0,45 mm - 120 mm; Diametral: 0,88 DP - 160 DP; Module: 0,25 mm - 60 mm; Whitworth: (54) 7/16 - 80 TPI
Tailstock — Tailstock quill diameter: 90 mm
Tailstock taper: 5 MT
Tailstock quill stroke: 235 mm
Tailstock traverse adjustment: ± 11 mm
Drive capacity — Motor rating main drive: 7,5 kW
Measures and weights — Overall dimensions (L x W x H): 3,24 m x 1,14 m x 1,91 m
Weight: 3.220 kg
