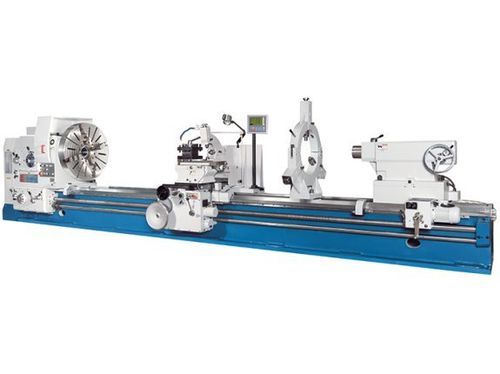

Conventional lathe DL E Heavy 620/5000

horizontal3-axisfor long workpieces

Description
Machines of the DL E Heavy series machine very large turning diameters and long workpiece lengths. This heavy lathe family handles conventional machining of parts up to 8000 mm in length and over 1600 mm in diameter. The extra-wide, heavily ribbed machine bed supports high workpiece weights. Powerful motors drive the main spindle via a finely adjustable multi-disc clutch. Rapid traverse in the support and motorized tailstock traverse increase efficiency on long beds.

Highlights

• Between centers up to 8000 mm
• Spindle bore 130 mm
• Main drive 22 kW
• High rapid feeds in X and Z
• Supplied with assembled 3-axis position indicator

Working area
Workpiece length (max.): 5.000 mm
Turning diameter over bed: 1.250 mm
Turning diameter over support: 900 mm
Workpiece weight (max.): 6.000 kg
Bed width: 755 mm
Max. weight capacity (between centers): 6.000 kg
Max. weight capacity (on chuck): 1.500 kg

Travels
Travel X-axis: 630 mm
Travel Z-axis: 4.800 mm
Travel Z1-axis: 300 mm
Swing range of top slide: ±180°

Headstock
Spindle speeds (right): 3.15 1/min - 315 1/min
Spindle speeds (left): 4 1/min - 315 1/min
Spindle bore: 130 mm
Spindle mount: ISO A2-15

Rapid feed
Rapid feed X-axis: 1.870 mm/min
Rapid feed Z-axis: 3.740 mm/min

Feed
Feed X-axis: 0.064 mm/R - 12 mm/R
Feed Z-axis: 0.032 mm/R - 6 mm/R
Feed Z1-axis: 0.016 mm/R - 3 mm/R

Threading
Threading, metric: 1 mm - 120 mm
Threading, diametral: (42) 30 - 1/4 DP
Threading, module: 0.5 mm - 60 mm
Threading, Whitworth: (48) 0.5 - 60 TPI

Tailstock
Tailstock quill diameter: 160 mm
Tailstock quill taper: metric 80
Tailstock quill stroke: 300 mm
Tailstock traverse adjustment: ±2.5 mm

Drive capacity
Main drive power: 22 kW

Measures and weights
Overall dimensions (L×W×H): 8.1 m x 1.88 m x 1.92 m
Weight: 13.300 kg

Standard equipment / selected items

• 3-axis position indicator X.Pos 3.2 (assembled)
• Complete overload clutch enclosed in apron
• Joystick control for X and Z feeds mounted to support
• Motorized tailstock positioning (for center widths ≥ 3000 mm)
• Rests and steady-rest options for long workpieces

Technical specifications

• Model: DL E Heavy 620/5000
• Workpiece length (max.): 5.000 mm
• Turning diameter over bed: 1.250 mm
• Turning diameter over support: 900 mm
• Max. workpiece weight: 6.000 kg
• Bed width: 755 mm
• Travel X/Z/Z1: 630 / 4.800 / 300 mm
• Main drive: 22 kW
• Rapid feed X/Z: 1.870 / 3.740 mm/min
• Feed ranges X/Z/Z1: 0.064–12 mm/R / 0.032–6 mm/R / 0.016–3 mm/R
• Threading ranges: metric 1–120 mm; module 0.5–60 mm; Whitworth 0.5–60 TPI
• Tailstock quill diameter/stroke: 160 mm / 300 mm
• Overall dimensions (L×W×H): 8.1 m × 1.88 m × 1.92 m
• Machine weight: 13.300 kg
