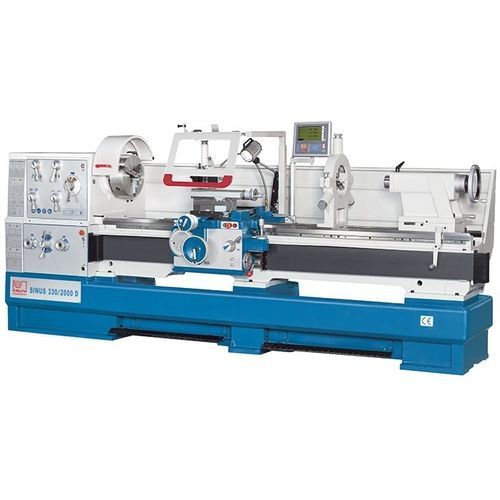

Conventional lathe Sinus 400/2000 D

horizontalD1-8for long workpieces

Overview
Sinus D is the largest series in the conventional engine lathe segment. The design relies on a heavy one-piece cast bed and a mechanical multi-plate clutch between motor and spindle. Integrated features such as a removable bed bridge, rapid traverse and a taper turning device support machining of long workpieces and large flanges.

Highlights

• One-piece heavy-duty cast bed for high rigidity
• Massive headstock with large spindle bearings and 105 mm spindle bore
• Rapid feed on X and Z axes for reduced non-productive times
• Taper turning device included to expand turning capabilities
• Comprehensive safety and protection features (guards, overload protection)

Product details

• Machine bed: Heavy one-piece cast base frame; bed guideways induction hardened and ground for lasting accuracy and low wear.
• Headstock and feed gear: Robust design delivering high accuracy and smooth running under load; spindle bore 105 mm; mechanical multi-plate clutch for controlled spindle start-up.
• Support (steady): Travelling steady can be moved longitudinally and transversely via rapid traverse to reduce auxiliary time; integrated overload protection and lead-screw cover to minimize contamination and wear.
• Tailstock: Tailstock quill with readable scale, long quill stroke (235 mm) and lateral adjustment for conical work and deep drilling/centering.
• Equipment and accessories: Centralized lubrication on the support; taper turning device standard (automatic longitudinal feed for external/internal tapers); quick-change toolholder system with cartridge; fixed and travelling steady rests included; large rear splashguard; integrated LED worklight; coolant system and operating tools included.

Technical specifications (selected tables)
Working area
Workpiece length (max.): 2.000 mm
Turning diameter over bed: 800 mm
Turning Ø over support: 570 mm
Turning diameter without gap bridge: 1.035 mm
Gap bridge length: 330 mm
Bed width: 400 mm

Travels
Travel X-axis: 420 mm
Travel Z1-axis: 230 mm
Swing range of top slide: 70°

Headstock
Spindle speed: 25 1/min - 1.600 1/min
Spindle bore: 105 mm
Spindle mount: D1-8
Spindle taper: ø 113 mm / 1:20

Rapid feed
Rapid feed X-axis: 2.000 mm/min
Rapid feed Z-axis: 4.000 mm/min

Feed
Feed X-axis: 0,022 mm/R - 0,74 mm/R
Feed Z-axis: 0,044 mm/R - 1,48 mm/R

Threading
Threading, metric: 0,45 mm - 120 mm
Threading, diametric: 0,88 DP - 160 DP
Threading, module: 0,25 mm - 60 mm
Threading, Whitworth: (54) 7/16 - 80 TPI

Tailstock
Tailstock quill diameter: 90 mm
Tailstock taper: 5 MT
Tailstock quill stroke: 235 mm
Tailstock traverse adjustment: ± 11 mm

Drive capacity
Motor rating main drive: 7,5 kW

Measures and weights
Overall dimensions (L x W x H): 3,74 m x 1,14 m x 1,91 m
Weight: 3.500 kg

Characteristics / technical data

• Model: Sinus 400/2000 D
• Category: Engine lathe (conventional lathe)
• Workpiece length (max.): 2.000 mm
• Turning diameter over bed: 800 mm
• Turning Ø over support: 570 mm
• Bed width: 400 mm
• Travel X-axis: 420 mm
• Travel Z1-axis: 230 mm
• Spindle speed range: 25 - 1.600 1/min
• Spindle bore: 105 mm
• Spindle mount: D1-8
• Spindle taper: ø 113 mm / 1:20
• Rapid feed X/Z: 2.000 / 4.000 mm/min
• Feed ranges X/Z: 0,022–0,74 mm/R / 0,044–1,48 mm/R
• Threading ranges: metric 0,45–120 mm; diametric 0,88–160 DP; module 0,25–60 mm; Whitworth (54) 7/16–80 TPI
• Tailstock quill diameter/stroke: 90 mm / 235 mm
• Main motor power: 7,5 kW
• Overall dimensions (L×W×H): 3,74 m × 1,14 m × 1,91 m
• Weight: 3.500 kg
