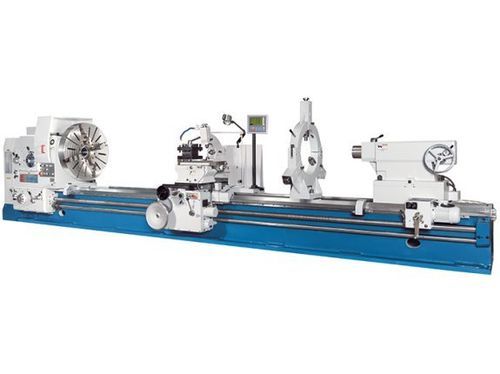

Conventional lathe DL E Heavy 620/1500

horizontal3-axis10 tools

Description
The DL E Heavy 620/1500 is a heavy-duty conventional lathe engineered for machining large diameters and long workpieces. It handles parts up to 1,500 mm in length and turning diameters over the bed up to 1,250 mm. The wide, ribbed cast-iron bed supports heavy workpiece weights while a 22 kW main drive and a finely adjustable multi-disc clutch drive the spindle; the tailstock is motorized on extended-center models.

Highlights

• Workpiece lengths in series up to 8,000 mm
• Turning diameter over bed: 1,250 mm
• Spindle bore: 130 mm
• Main spindle power: 22 kW
• Delivered with mounted 3-axis position indicator

Working area
Workpiece length (max.): 1.500 mm
Turning diameter over bed: 1.250 mm
Turning diameter over carriage: 900 mm
Max. workpiece weight (between centers): 6.000 kg
Bed width: 755 mm
Max. workpiece weight (on chuck): 1.500 kg

Travels
Travel X-axis: 630 mm
Travel Z-axis: 1.300 mm
Travel Z1-axis: 300 mm
Top slide swing range: ± 180°

Headstock
Spindle speeds (right): 3,15 1/min - 315 1/min
Spindle speeds (left): 4 1/min - 315 1/min
Spindle bore: 130 mm
Spindle mount: ISO A2-15

Rapid feed
Rapid feed X-axis: 1.870 mm/min
Rapid feed Z-axis: 3.740 mm/min

Feed
Feed X-axis: 0,064 mm/R - 12 mm/R
Feed Z-axis: 0,032 mm/R - 6 mm/R
Feed Z1-axis: 0,016 mm/R - 3 mm/R

Threading
Threading, metric: 1 mm - 120 mm
Threading, diametral: (42) 30 - 1/4 DP
Threading, module: 0,5 mm - 60 mm
Threading, Whitworth: (48) 0,5 - 60 TPI

Tailstock
Tailstock quill diameter: 160 mm
Tailstock quill taper: metric 80
Tailstock quill stroke: 300 mm
Tailstock traverse adjustment: ± 2,5 mm

Drive capacity
Main drive motor rating: 22 kW

Dimensions and weight
Overall dimensions (L x W x H): 4,6 m x 1,81 m x 1,79 m
Weight: 9.750 kg

Product details / construction and functions

• Wide ribbed cast-iron bed for vibration damping and rigidity
• Induction-hardened and ground guideways
• Robust multi-disc clutch for headstock drive
• Separate rapid-feed motor for X and Z axes
• Joystick control for X/Z feeds mounted on the support
• Motorized tailstock positioning (models from 3.000 mm centers)
• Large spindle bearings and overload clutch enclosed in apron
• Delivered with fully assembled 3-axis position indicator

3-axis position indicator (features)

• Improved machining accuracy and reduced error rate
• Time savings and increased productivity
• Easy-to-read display and user-friendly keyboard
• Resolution: 0.01 / 0.005 mm
• Storage for 10 tools; radius/diameter toggle; mm/inch conversion; hole circle calculation

Technical specifications

• Model series: DL E Heavy
• Typical applications: conventional heavy turning for large diameters and long center distances
• Max workpiece length (this variant): 1.500 mm
• Turning diameter over bed (this variant): 1.250 mm
• Main spindle bore: 130 mm
• Main spindle power: 22 kW
• Max workpiece weight between centers: 6.000 kg
• Rapid feeds: X = 1.870 mm/min; Z = 3.740 mm/min
• Feed ranges: X = 0,064–12 mm/R; Z = 0,032–6 mm/R
