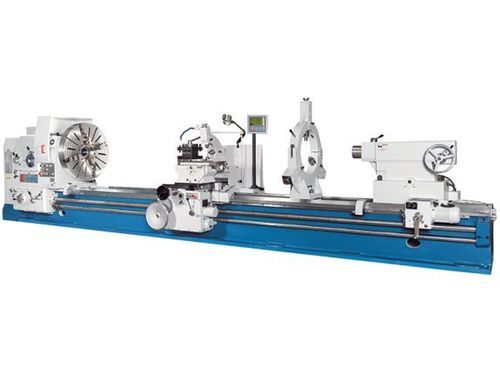

Conventional lathe DL E Heavy 800/8000

horizontal3-axisfor long workpieces

Overview
Machines of the DL E Heavy series permit machining of very large turning diameters and long workpieces. This conventional lathe range handles workpieces up to 8,000 mm in length and turning diameters over 1,600 mm. The wide, rib-reinforced bed supports heavy workpiece weights. Powerful drive motors transmit torque to the main spindle via a finely adjustable multi-disc clutch. Rapid traverse in the carriage and a motorised tailstock are provided for efficient handling of long bed lengths.

Product highlights

• Center widths up to 8,000 mm
• Spindle bore Ø 130 mm (ISO A2-15)
• Main spindle motor 22 kW
• Rapid traverse in X and Z
• Supplied with mounted 3-axis position indicator

Working area
Maximum workpiece length: 8,000 mm
Turning diameter over bed: 1,600 mm
Turning diameter over support: 1,280 mm
Maximum workpiece weight: 6,000 kg (between centers)
Bed width: 970 mm
Max. workpiece weight on chuck: 1,500 kg

Travels
Travel X-axis: 820 mm
Travel Z-axis: 7,800 mm
Travel Z1-axis: 200 mm
Top slide swivel range: ±180°

Headstock
Spindle speeds (right): 2.5 1/min - 250 1/min
Spindle speeds (left): 3.15 1/min - 250 1/min
Spindle bore: 130 mm
Spindle mount: ISO A2-15

Rapid feed
Rapid feed X-axis: 1,870 mm/min
Rapid feed Z-axis: 3,740 mm/min

Feed
Feed X-axis: 0.064 mm/R - 12 mm/R
Feed Z-axis: 0.032 mm/R - 6 mm/R
Feed Z1-axis: 0.016 mm/R - 3 mm/R

Threading
Metric: 1 mm - 120 mm
Diametral: (42) 30 - 1/4 DP
Module: 0.5 mm - 60 mm
Whitworth: (48) 0.5 - 60 TPI

Tailstock
Tailstock quill diameter: 160 mm
Tailstock quill taper: MT80
Tailstock quill stroke: 300 mm
Tailstock transverse adjustment: ±2.5 mm

Drive capacity
Main spindle motor rating: 22 kW

Measures and weights
Overall dimensions (L x W x H): 11.04 m x 2.06 m x 2.23 m
Machine weight: 21,020 kg

Standard equipment (selection)

• Mounted 3-axis position indicator X.Pos 3.2
• 4-jaw face plate chuck Ø 1400 mm
• Coolant system
• Steady rest 220–630 mm
• Motorised tailstock
• LED work lamp, center points, reducing sleeve
• Foundation bolts, central lubrication, operating tools, manual

Optional equipment (selection)

• Follow rest 50–220 mm
• Steady rest 260–900 mm
• Quick-set spindle bore stops (various sizes)
• Quick-change tool holder sets / clamped turning tool sets / indexable insert sets
• Chip removal and workshop equipment options

Additional product details

• Heavy-duty cast-iron body with ribbed bed to minimise vibration
• Induction-hardened and ground guideways
• Robust multi-disc clutch for headstock drive
• Separate rapid feed motor for X and Z
• Joystick control for X/Z feeds mounted on the carriage
• Motorised tailstock positioning (for center widths ≥ 3000 mm)
• Large spindle bearings and enclosed overload clutch in the apron

Technical specifications

• Series / Model: DL E Heavy
• Maximum center width: 8,000 mm
• Turning diameter over bed: 1,600 mm
• Turning diameter over support: 1,280 mm
• Max workpiece weight between centers: 6,000 kg
• Spindle bore: 130 mm (ISO A2-15)
• Main spindle motor: 22 kW
• Rapid feeds: X 1,870 mm/min; Z 3,740 mm/min
• Feeds: X 0.064–12 mm/R; Z 0.032–6 mm/R
• Tailstock quill: Ø 160 mm, stroke 300 mm, taper MT80
• Overall dimensions: 11.04 m x 2.06 m x 2.23 m
• Machine weight: 21,020 kg
