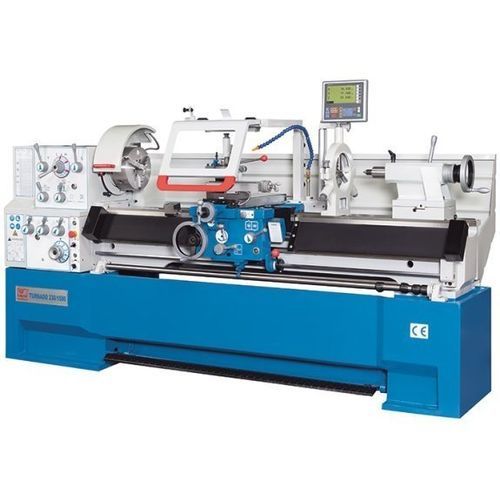

Conventional lathe Turnado 230/1500

horizontal3-axisCamlock D1-6

Description
The Turnado series is the modern version of the conventional lathe, built for workshop and small-series production. These machines combine a one-piece heavy cast-iron bed, a powerful main motor and flexible tooling options. Standard equipment includes a 3-axis position indicator and a quick-change toolholder system; a wide accessory range allows adaptation to specific production tasks.

Highlights

• Classic rigid construction with one-piece heavy cast bed
• Centre height 230 mm and turning Ø over bed 460 mm
• Max. workpiece length 1,500 mm and removable gap bridge for large diameters
• 3-axis position indicator and adjustable longitudinal stops
• Comprehensive standard equipment package

Technical specifications (tables)
Working area
Workpiece length (max.): 1,500 mm
Turning-Ø over bed: 460 mm
Turning-Ø over support: 274 mm
Turning diameter over gap bridge: 690 mm
Gap bridge length: 155 mm
Bed width: 300 mm
Center height: 230 mm

Details
Equipment: with position indicator

Travels
Travel X-axis: 285 mm
Travel Z1-axis: 128 mm
Swing range of top slide: ± 52°

Headstock
Spindle speeds: (12) 25 - 2,000 1/min
Spindle bore: 58 mm
Spindle mount: Camlock D1-6
Spindle taper: 6 MT

Feed
Feed X-axis: 0.014 mm/R - 0.784 mm/R
Feed Z-axis: 0.031 mm/R - 1.7 mm/R

Threading
Threading, metric: 0.1 mm - 14 mm
Threading, diametral: (50) 4-112 DP
Threading, module: 0.1 mm - 7 mm
Threading, whitworth: (60) 2-112 TPI

Tailstock
Tailstock quill diameter: 60 mm
Tailstock taper: 4 MT
Tailstock quill stroke: 120 mm
Tailstock traverse adjustment: ± 13 mm

Drive capacity
Motor rating main drive: 5.5 kW

Measures and weights
Overall dimensions (length x width x height): 2.75 m x 1.08 m x 1.34 m
Weight: 1,970 kg

Product details

• Machine bed: Heavily ribbed one-piece cast-iron bed, rigid headstock and massive stand provide a stable machine base and long-term guideway precision. Removable bridge allows machining of short workpieces with large diameters.
• Headstock / feed gear: Multi-step gearbox and hardened, ground gears run in an oil bath to deliver high torque and reliable spindle support. Large spindle bore for shafts and tubes; standard chucks and faceplate included. User-friendly control panel at the headstock.
• Support: Extra-wide support designed to absorb high cutting forces. Safety-interlocked feed controls, micrometer bed stop, slip coupling for automatic feed and central lubrication ensure safe, repeatable operation. Large swivable safety cover keeps the work area clean.
• Tailstock: Tailstock quill with clear scale and long stroke for demanding drilling/centering tasks; lateral adjustment for conical shafts.
• Accessories (standard): Brake pedal, rear splash guard, integrated LED work light, quick-change toolholder system with cartridge, steady and live rests, latest-generation position indicator, coolant system and operating tools.

Characteristics / technical specifications

• Model: Turnado 230/1500
• Workpiece length (max.): 1,500 mm
• Turning Ø over bed: 460 mm
• Turning Ø over support: 274 mm
• Center height: 230 mm
• Spindle speeds: (12) 25 - 2,000 1/min
• Spindle bore: 58 mm
• Spindle mount: Camlock D1-6
• Spindle taper: 6 MT
• Main motor: 5.5 kW
• Overall dimensions (L×W×H): 2.75 m × 1.08 m × 1.34 m
• Weight: 1,970 kg
