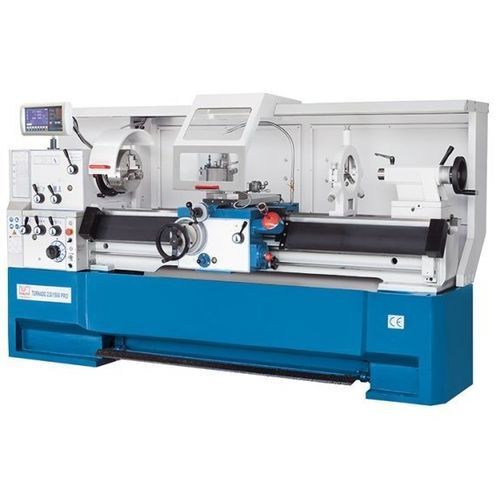

Conventional lathe Turnado 230/1000 PRO

horizontal2-axisuniversal

Overview
The Turnado PRO series revives the classic lathe with modern drive and control technology for demanding industrial turning. The PRO models combine inverter-controlled wide-speed ranges, constant cutting-speed functionality and rapid traverses to deliver efficient manual and semi-automatic machining of shafts, bushings and turned components.

Highlights

• Inverter-controlled, infinitely variable speed range
• Apron with rapid-feed motor for fast positioning
• Extensive standard equipment and adjustable guides
• Constant cutting speed (V‑constant) for uniform surface finish

Product Details

• Ergonomic machine enclosure integrating controls and functions for operator convenience
• Heavily ribbed cast-iron bed, rigid headstock and massive one-piece stand for stability
• Removable gap bridge enables machining of short workpieces with large diameters
• Back-gearing and advanced electronic spindle control provide high torque and a broad speed range
• Preloaded, high-precision spindle bearings ensure concentricity and load capacity
• All guideways are adjustable; gears, transmission shafts and guides are hardened and ground for quiet operation
• Apron runs in an oil bath for low maintenance; central lubrication in the support simplifies upkeep
• Micrometer bed stop ensures high repeatability on the Z-axis
• Tailstock quill adjustable laterally for taper turning
• X.Pos position indicator supplemented with a digital speed readout and programmable auxiliary functions
• Constant cutting speed: spindle speed automatically adapts during facing to maintain cutting-edge speed comparable to CNC turning

Technical Specifications
Working area
Center distance: 1000 mm
Center height: 230 mm
Turning diameter over bed: 460 mm
Turning diameter over gap bridge: 690 mm
Turning diameter over support: 274 mm
Gap bridge length: 155 mm
Bed width: 300 mm

Travels
Travel X-axis: 285 mm
Travel Z1-axis: 128 mm
Swing range of top slide: ± 52°

Headstock
Speed range, low: 30 1/min - 600 1/min
Speed range, high: 600 1/min - 3000 1/min
Spindle bore: 58 mm
Spindle mount: Camlock D1-6
Spindle taper: 6 MT

Feed
Feed X-axis: 0.025 mm/rev - 1.384 mm/rev
Feed Z-axis: 0.055 mm/rev - 3.061 mm/rev

Threading
Threading, metric: 0.1 mm - 14 mm
Threading, diametral: (50) 4-112 DP
Threading, module: 0.1 mm - 7 mm
Threading, Whitworth: (60) 2-112 TPI

Tailstock
Tailstock quill diameter: 60 mm
Tailstock taper: MK 4
Tailstock quill stroke: 120 mm
Tailstock traverse adjustment: ± 13 mm

Drive capacity
Motor rating main drive: 7.5 kW

Measures and weights
Overall dimensions (L x W x H): 2.2 m x 1.08 m x 1.57 m
Weight: 1720 kg

Features / technical specifications

• Model: Turnado 230/1000 PRO
• Type: Universal lathe for manual and semi-automatic turning
• V-constant function for uniform cutting speed during facing
• Removable gap bridge for large-diameter short parts
• Spindle bore 58 mm, Camlock D1-6, taper 6 MT; spindle speed up to 3000 1/min
• Feed ranges and threading options cover metric, diametral, module and Whitworth
• Main motor: 7.5 kW; footprint and weight suited to industrial shop floors
