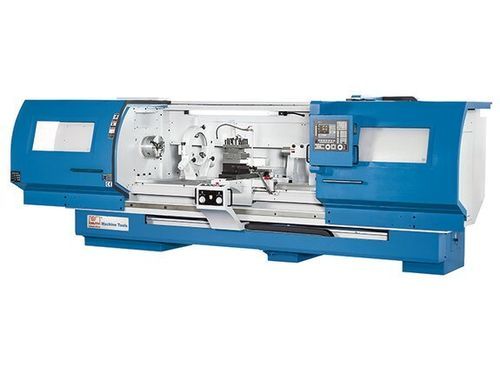

CNC lathe Forceturn 630.15

horizontal2-axisflatbed

Overview
The Forceturn 630.15 is a cycle-controlled CNC flatbed lathe designed for machining large, heavy workpieces. The robust flat-bed construction provides high rigidity and precision for standard workpiece lengths up to 1,600 mm (options extendable up to 5,000 mm). The control features a teach-in function and two electronic handwheels allow manual-style operation for setup and single-part production. A wide range of options ensures adaptation to specific production or maintenance requirements.

Highlights

• Powerful main drive for heavy cutting
• Servo-driven 4-position tool changer
• Two electronic handwheels for manual operation and fast setup
• Cycle programming for series production

Working area
Turning diameter over bed: 670 mm
Bed width: 450 mm
Center height: 335 mm
Turning diameter over carriage: 400 mm
Max. workpiece length (standard): 1,600 mm

Travels
Travel X-axis: 450 mm
Travel Z-axis: 1,500 mm

Headstock
Speed range: 27 1/min - 2,250 1/min
Spindle mount: D1-8
Spindle bore: 85 mm

Rapid feed
Rapid feed X-axis: 5,000 mm/min
Rapid feed Z-axis: 5,000 mm/min

Tooling
Number of tool stations: 4 positions (servo-driven)

Accuracies
Positioning accuracy X-axis: 0.015 mm
Positioning accuracy Z-axis: 0.015 mm
Repeatability X-axis: 0.007 mm
Repeatability Z-axis: 0.007 mm

Tailstock
Tailstock taper: 5 MT
Tailstock quill diameter: 105 mm
Tailstock quill stroke: 170 mm

Drive capacity
Main drive rating: 22 kW (15 kW continuous)
X-axis motor: 2 kW
Z-axis motor: 3.6 kW
Total power consumption: 40 kVA

Measures and weights
Overall dimensions (L x W x H): 4 m x 2.25 m x 2.25 m
Weight: 4,100 kg

Technical specifications

• Model: Forceturn 630.15
• Machine type: Cycle-controlled flatbed CNC lathe
• Working area: Turning Ø over bed 670 mm; Bed width 450 mm; Center height 335 mm; Turning Ø over carriage 400 mm; Max. workpiece length 1,600 mm
• Travels: X 450 mm; Z 1,500 mm
• Headstock: Speed range 27–2,250 1/min; Spindle mount D1-8; Spindle bore 85 mm
• Rapid feed: X/Z 5,000 mm/min
• Tooling: 4-position servo tool changer
• Accuracy: Positioning X/Z 0.015 mm; Repeatability X/Z 0.007 mm
• Tailstock: Taper 5 MT; Quill Ø 105 mm; Quill stroke 170 mm
• Drive capacity: Main motor 22 kW (15 kW continuous); X 2 kW; Z 3.6 kW; Total 40 kVA
• Dimensions & weight: Footprint approx. 4 m x 2.25 m x 2.25 m; Weight ~4,100 kg
• Standard features: Fagor control (Fagor 8058 Elite), 2 electronic handwheels, coolant system, central lubrication
