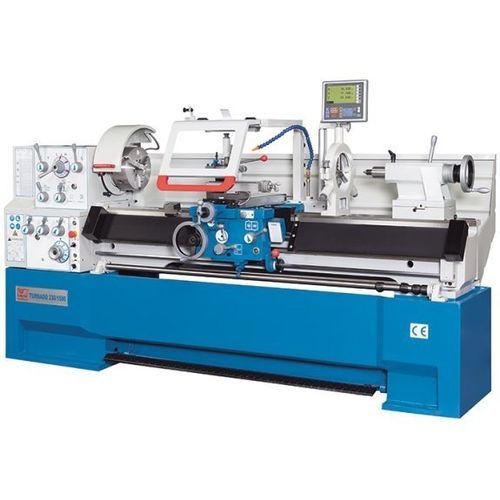

Conventional lathe Turnado 280/2000

horizontal3-axisthreading

Overview
The Turnado series are modern conventional lathes designed for versatile industrial turning operations. They combine a heavy one-piece cast-iron bed, a high-torque main drive and a comprehensive standard equipment package including a 3‑axis position indicator and a quick-change toolholder system.

Highlights

• Classic, rigid construction with one-piece cast bed
• Heavy-duty spindle bore and wide spindle speed range
• 3-axis digital position indicator with multiple turning functions
• Adjustable longitudinal stops and micrometer bed stop
• Extensive standard accessories for immediate production use

Technical specs — Working area
Workpiece length (max.): 1.928 mm
Turning-Ø over bed: 560 mm
Turning-Ø over support: 355 mm
Turning diameter over gap bridge: 785 mm
Gap bridge length: 170 mm
Bed width: 350 mm
Center height: 280 mm

Technical specs — Details
Equipment: with position indicator

Technical specs — Travels
Travel X-axis: 316 mm
Travel Z1-axis: 130 mm
Swing range of top slide: ± 52°

Technical specs — Headstock
Spindle speeds: (12) 25 - 1.600 1/min
Spindle bore: 80 mm
Spindle mount: Camlock D1-8
Spindle taper: 7 MT

Technical specs — Feed
Feed X-axis: 0,02 mm/R - 0,573 mm/R
Feed Z-axis: 0,059 mm/R - 1,646 mm/R

Technical specs — Threading
Threading, metric: 0,2 mm - 14 mm
Threading, diametric: (50) 4-112 DP
Threading, module: 0,1 mm - 7 mm
Threading, whitworth: (60) 2-112 TPI

Technical specs — Tailstock
Tailstock quill diameter: 75 mm
Tailstock taper: 5 MT
Tailstock quill stroke: 180 mm
Tailstock traverse adjustment: ± 12 mm

Technical specs — Drive capacity
Motor rating main drive: 7,5 kW

Technical specs — Measures and weights
Overall dimensions (L x W x H): 3,34 m x 1,15 m x 1,46 m
Weight: 2.720 kg

Product details — Machine bed

• Heavily ribbed one-piece cast-iron bed and massive stand provide a stable clamping base for efficient chip removal
• Removable gap bridge permits machining of short workpieces with large diameters
• V-block guideways hardened and ground for long-term precision

Product details — Headstock / feed gear

• High-torque main motor with stepped gears for a wide spindle speed range
• Hardened and ground gears and shafts running in an enclosed oil bath
• Large spindle bore for clamping shafts and tubes with large diameters
• High-quality spindle support with preloading for precision under radial and axial loads
• Standard: 3-jaw chuck (hard reversible jaws), 4-jaw independent chuck, and large face plate
• User-friendly control panel at the headstock for intuitive operation
• Feed gear offers a wide selection of thread leads (metric and Whitworth)

Product details — Support

• Extra-wide support designed to withstand high machining forces
• Control lever and apron nut feature automatic safety interlocking
• Stop spindle with four adjustable cams for automatic linear feed shut-off
• Preset positions simplify repetitive operations with different Z positions
• Micrometer bed stop for precise travel limits
• Central slip coupling on apron for easy adjustment of automatic feed
• Thread gauge and support simplify interrupted tapping and multi-lead thread work
• Top slide swivels with large, easy-to-read scale
• Large swivelling safety cover at the support protects operator and workspace
• Central lubrication at the support supplies all guideways and eases maintenance

Product details — Tailstock

• Tailstock quill fitted with a robust, easy-to-read scale
• Long quill stroke for complex drilling and centering operations
• Tailstock lateral adjustment for machining conical shafts between centers

Product details — Accessories (standard / included)

• 3-jaw chuck Ø 315 mm (self-centering, one set of hard jaws)
• 4-jaw independent chuck Ø 350 mm (one set of hard jaws)
• Face plate Ø 450 mm
• Follow and steady rests (Steady rest Ø13–152 mm, Follow rest Ø13–80 mm)
• 3-axis position indicator X.Pos 3.2 (digital readout)
• Quick-change toolchanger system and tool cartridges
• Coolant system
• Micrometer longitudinal stop
• Thread gauge
• Reducing sleeves, live/dead centers, protective shields, chuck guard, foot brake pedal
• Work light, complete tool kit and operating manual
