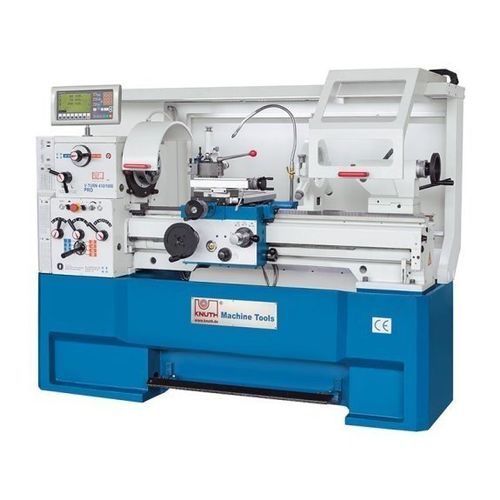

Manual lathe V-Turn 410 PRO

horizontal3-axisCamlock D1-6

Overview
The V-Turn 410 PRO universal lathe combines improved ergonomics and enhanced safety with a high-performance spindle drive. Equipped with an inverter and a 5.5 kW spindle motor delivering up to 3,000 rpm, it machines small-diameter workpieces efficiently while retaining stiffness for heavy cutting. The integrated constant cutting-speed function adjusts spindle speed during facing to maintain optimal cutting conditions and achieve turning results comparable to CNC lathes.

Highlights

• Ergonomic machine enclosure
• Improved apron with automated feed
• Constant cutting-speed (V-constant) function
• High spindle speed and 5.5 kW motor power
• Roller bearings by NSK

Product Details

• Includes 3-axis position indicator with integrated spindle-speed display, fully assembled
• Redesigned enclosure and added safety features for improved operator ergonomics
• Constant cutting speed: spindle speed adapts automatically during facing to maintain cutting-edge speed and surface quality comparable to CNC turning
• Heavily ribbed cast-iron bed, rigid headstock and massive one-piece cast-iron stand provide a solid machine base
• Wide, induction-hardened guideways for long life and superior turning accuracy
• Facing and top slides with adjustable guideways and spindle nuts
• High-precision preloaded spindle bearings for excellent concentricity and load capacity
• Powerful 5.5 kW main spindle motor for rapid acceleration and effective chip removal
• Back-gearing for high torque during heavy cuts
• Rugged feed switch on the support for simplified operation
• X.Pos position indicator features complemented by a digital speed display and an easy-to-program auxiliary function
• Maintenance-free electromagnetic brake on the main spindle for reliable stopping
• SKU: 300822
• Quick delivery

Technical specifications
Working area
Center width: 1.000 mm
Center height: 205 mm
Turning diameter over bed: 380 mm
Turning diameter over gap bridge: 580 mm
Turning-Ø over support: 255 mm
Gap bridge length: 250 mm
Bed width: 250 mm

Travels
Travel X-axis: 210 mm
Travel Z1-axis: 140 mm
Swing range of top slide: ± 45°

Headstock
Speed range, high: 550 1/min - 3.000 1/min
Speed range, low: 30 1/min - 550 1/min
Spindle bore: 52 mm
Spindle mount: Camlock D1-6
Spindle taper: 6 MT

Feed
Feed X-axis: 0,013 mm/R - 0,45 mm/R
Feed Z-axis: 0,026 mm/R - 0,9 mm/R

Threading
Threading, metric: (39) 0,2-14 mm
Threading, diametric: (21) 8-44 DP
Threading, module: 0,3 mm - 3,5 mm
Threading, Whitworth: (45) 2-72 TPI

Tailstock
Tailstock quill diameter: 50 mm
Tailstock taper: 4 MT
Tailstock quill stroke: 120 mm
Tailstock traverse adjustment: ± 13 mm

Drive capacity
Motor rating main drive: 5,5 kW

Measures and weights
Overall dimensions (L×W×H): 1,94 m x 1 m x 1,6 m
Weight: 1.210 kg

Technical characteristics

• Model: V-Turn 410 PRO
• Series: V-Turn PRO
• Type: Universal lathe
• Center width: 1.000 mm
• Center height: 205 mm
• Turning diameters: 380 mm (over bed) / 580 mm (over bridge)
• Travel X/Z: 210 mm / 140 mm
• Top slide swivel: ±45°
• Spindle speeds: 30–3.000 1/min (two ranges)
• Spindle bore: 52 mm, Camlock D1-6, 6 MT
• Main spindle motor: 5,5 kW
• Feeds X/Z: 0,013–0,45 mm/R / 0,026–0,9 mm/R
• Threading: metric 0,2–14 mm; module 0,3–3,5 mm
• Tailstock quill: 50 mm diameter, 120 mm stroke
• Dimensions (L×W×H): 1,94 m × 1,00 m × 1,60 m
• Weight: 1.210 kg
• Additional features: constant cutting-speed function, X.Pos 3-axis indicator (speed display), one-piece cast-iron stand, induction-hardened guideways, preloaded spindle bearings, electromagnetic spindle brake
