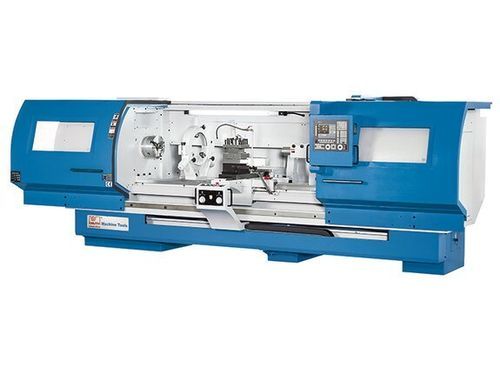

CNC lathe Forceturn 630.30

horizontal2-axisflatbed

Product description
The Forceturn series offers a cycle-controlled flat-bed CNC lathe platform for machining large and heavy workpieces. The machine design supports long parts (series up to 5,000 mm) with high geometric stability. The intuitive Fagor control provides teach-in and cycle programming; two electronic handwheels enable manual-style operation and fast setup. A range of options (steady rests, tailstock variants, chip conveyors, turret options) allows configuration to specific production or maintenance tasks.

Highlights

• Cycle-controlled CNC operation for single-part and batch production
• 4-station servo-driven tool changer for programmed tool changes
• Two electronic handwheels for manual operation and fine positioning
• Infinitely variable spindle speeds with automatic 3-step main gear

Product details

• Fagor control with intuitive cycle programming and Profile Editor for complex parts
• Graphical simulation to verify programs prior to machining
• Large hardened, ground and counter-laminated guides in a massive flat bed
• Main drive motor rated for heavy workpieces (peak 22 kW, continuous 15 kW)
• High-performance coolant system and automatic central lubrication included
• Spindle bore: 85 mm (models 630) or 105 mm (models 800)
• Heavy automatic 4-station servo tool holder for reliable tool changes
• Two electronic handwheels on the control panel for quick setup and manual interventions

Technical specs
Working area
Turning diameter over bed: 670 mm
Bed width: 450 mm
Center height: 335 mm
Turning Ø over support: 400 mm
Workpiece length (max.): 3,100 mm

Travels
Travel X-axis: 450 mm
Travel Z-axis: 3,000 mm

Headstock
Speed range: 27 1/min - 2,250 1/min
Spindle mount: D1-8
Spindle bore: 85 mm

Rapid feed
Rapid feed X-axis: 5,000 mm/min
Rapid feed Z-axis: 5,000 mm/min

Tooling
Number of tool stations: 4 positions

Accuracies
Positioning accuracy X-axis: 0.015 mm
Positioning accuracy Z-axis: 0.02 mm
Repeatability X-axis: 0.007 mm
Repeatability Z-axis: 0.01 mm

Tailstock
Tailstock taper: 5 MT
Tailstock quill diameter: 105 mm
Tailstock quill stroke: 170 mm

Drive capacity
Motor rating main drive: 22 kW
Main drive, continuous load: 15 kW
Motor rating X-axis: 2 kW
Motor rating Z-axis: 3.6 kW
Total power consumption: 40 kVA

Measures and weights
Overall dimensions (L x W x H): 5.5 m x 2.25 m x 2.25 m
Weight: 5,600 kg

Key features / technical summary

• Model: Forceturn 630.30
• Machine type: Cycle-controlled flat-bed CNC lathe
• Control: Fagor (cycle programming, Profile Editor, graphical simulation)
• Spindle bore (630): 85 mm; spindle mount D1-8
• Turning diameter over bed: 670 mm; over support: 400 mm
• Max indicated workpiece length: 3,100 mm (series configuration supports longer parts)
• Travel X/Z: 450 mm / 3,000 mm; rapid feed X/Z: 5,000 mm/min
• Main motor: 22 kW (15 kW continuous); total consumption: 40 kVA
