Manually-controlled lathe V-Turn 410/1000
horizontal3-axisCamlock D1-6

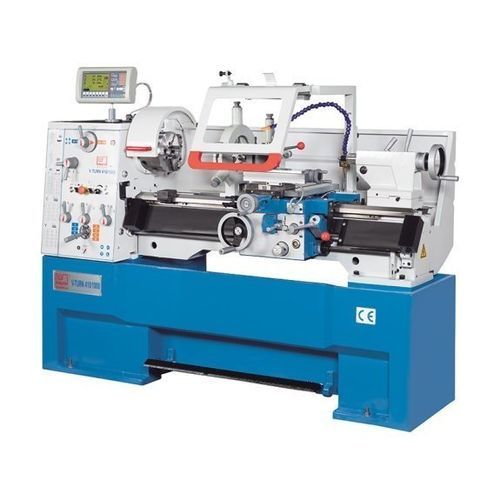

Manually-controlled lathe - V-Turn 410/1000 - Knuth Machine Tools - horizontal / 3-axis / Camlock D1-6
Manually-controlled lathe - V-Turn 410/1000 - Knuth Machine Tools - horizontal / 3-axis / Camlock D1-6
Manually-controlled lathe - V-Turn 410/1000 - Knuth Machine Tools - horizontal / 3-axis / Camlock D1-6 - image - 2
Manually-controlled lathe - V-Turn 410/1000 - Knuth Machine Tools - horizontal / 3-axis / Camlock D1-6 - image - 3
Manually-controlled lathe - V-Turn 410/1000 - Knuth Machine Tools - horizontal / 3-axis / Camlock D1-6 - image - 4
Manually-controlled lathe - V-Turn 410/1000 - Knuth Machine Tools - horizontal / 3-axis / Camlock D1-6 - image - 5
Manually-controlled lathe - V-Turn 410/1000 - Knuth Machine Tools - horizontal / 3-axis / Camlock D1-6 - image - 6
Manually-controlled lathe - V-Turn 410/1000 - Knuth Machine Tools - horizontal / 3-axis / Camlock D1-6 - image - 7
Manually-controlled lathe - V-Turn 410/1000 - Knuth Machine Tools - horizontal / 3-axis / Camlock D1-6 - image - 8
Manually-controlled lathe - V-Turn 410/1000 - Knuth Machine Tools - horizontal / 3-axis / Camlock D1-6 - image - 9
Manually-controlled lathe - V-Turn 410/1000 - Knuth Machine Tools - horizontal / 3-axis / Camlock D1-6 - image - 10
Add to favorites
Compare this product
Go to the Knuth Machine Tools website for more information

Characteristics

Control type
manually-controlled
Spindle orientation
horizontal
Number of axes
3-axis
Spindle mount
Camlock D1-6
Applications
for small parts production, for small workpieces
Performance
powerful, precision
Associated function
threading
Diameter

380 mm
(14.96 in)

Spindle speed

Max.: 3,000 rpm
(18,849.556 rad.min-1)

Min.: 30 rpm
(188.496 rad.min-1)

Axe X

210 mm
(8 in)

Axe Z

140 mm
(6 in)

Nominal power

5.5 kW
(7.5 hp)

Overall lenght

1,940 mm
(76 in)

Overall width

1,000 mm
(39 in)

Overall height

1,320 mm
(52 in)

Weight

1,200 kg
(2,646 lb)

Description

Overview
The V-Turn 410/1000 is a precision lathe designed for both accurate workshop turning and small-series production. Fitted with an inverter and a high-performance spindle motor, it provides two continuously variable speed ranges up to 3,000 1/min and delivers stable performance for heavier machining operations. The X-Pos integrated "constant cutting speed" function automatically adjusts spindle speed during facing to maintain cutting-edge speed and surface quality comparable to CNC lathes.

Highlights
  • Constant cutting speed (X-Pos)
  • High spindle speed and 5.5 kW motor power
  • Comprehensive standard equipment
  • Large roller bearings from NSK

Technical specifications (tables)
Working area
Center width: 1,000 mm
Center height: 205 mm
Turning diameter over bed: 380 mm
Turning diameter over gap bridge: 580 mm
Turning Ø over support: 255 mm
Gap bridge length: 250 mm
Bed width: 250 mm

Travels
Travel X-axis: 210 mm
Travel Z1-axis: 140 mm
Swing range of top slide: ±45°

Headstock
Speed range, high: 550 1/min - 3,000 1/min
Speed range, low: 30 1/min - 550 1/min
Spindle bore: 52 mm
Spindle mount: Camlock D1-6
Spindle taper: 6 MT

Feed
Feed X-axis: 0.025 mm/R - 0.85 mm/R
Feed Z-axis: 0.05 mm/R - 1.7 mm/R

Threading
Threading, metric: (39) 0.2 - 14 mm
Threading, diametral: (21) 8 - 44 DP
Threading, module: 0.3 mm - 3.5 mm
Threading, whitworth: (45) 2 - 72 TPI

Tailstock
Tailstock quill diameter: 50 mm
Tailstock taper: 4 MT
Tailstock quill stroke: 120 mm
Tailstock traverse adjustment: ±13 mm

Drive capacity
Motor rating main drive: 5.5 kW

Measures and weights
Overall dimensions (L x W x H): 1.94 m x 1.00 m x 1.32 m
Weight: 1,200 kg

Product Details
  • Constant cutting speed: during facing the spindle speed adapts to the changing workpiece diameter to maintain cutting-edge speed and achieve surface finishes comparable to CNC turning
  • Rigid, heavily ribbed one-piece cast-iron bed and frame provide stability for precision and long life
  • Wide, hardened and ground guideways for superior turning results
  • Large, high-precision spindle bearings ensure excellent concentricity
  • Hardened and ground headstock gears and shafts for quiet operation and consistent speed
  • 5.5 kW spindle motor for powerful machining
  • Infinitely variable spindle speeds: 30–550 and 550–3,000 rpm
  • Micrometer and turret stop included
  • Integrated central lubrication at the support for low maintenance
  • X.Pos 3‑axis position indicator with integrated spindle speed display and auxiliary functions, fully assembled
  • Maintenance‑free electromagnetic spindle brake for safe, reliable deceleration

Technical specifications
  • Model: V-Turn 410/1000
  • Manufacturer: KNUTH
  • Center width: 1,000 mm
  • Turning diameter over bed: 380 mm
  • Spindle bore: 52 mm (Camlock D1-6, 6 MT)
  • Max spindle speed: up to 3,000 1/min (two ranges)
  • Main motor: 5.5 kW
  • Travel X: 210 mm • Travel Z1: 140 mm
  • Tailstock quill stroke: 120 mm • Tailstock quill dia: 50 mm
  • Overall dimensions: 1.94 m x 1.00 m x 1.32 m • Weight: 1,200 kg
