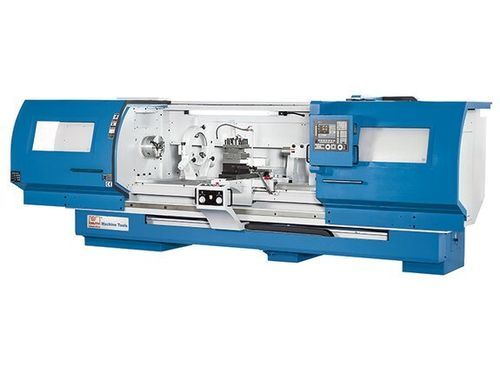

CNC lathe Forceturn 630.50

horizontal2-axisflatbed

Description
The Forceturn 630.50 is a flat-bed CNC lathe designed for machining long and heavy workpieces. The flat-bed construction with hardened, ground guides delivers precise turning performance for parts up to 5.100 mm in length. The control features teach-in functionality and two electronic handwheels for manual setup and fine positioning. A range of options allows configuration for maintenance tasks or single-part production.

Highlights

• Powerful main drive for heavy machining
• Servo-driven 4-station tool changer
• Two electronic handwheels for manual operation and setup
• Cycle programming with graphical simulation and profile editor

Working area

• Turning diameter over bed: 670 mm
• Bed width: 450 mm
• Center height: 335 mm
• Turning Ø over support: 400 mm
• Workpiece length (max.): 5.100 mm

Travels

• Travel X-axis: 450 mm
• Travel Z-axis: 5.000 mm

Headstock

• Speed range: 27 1/min - 2.250 1/min
• Spindle mount: D1-8
• Spindle bore: 85 mm

Rapid feed

• Rapid feed X-axis: 5.000 mm/min
• Rapid feed Z-axis: 5.000 mm/min

Tooling

• Number of tool stations: 4 positions (servo-driven tool changer)

Accuracies

• Positioning accuracy X-axis: 0,015 mm
• Positioning accuracy Z-axis: 0,03 mm
• Repeatability X-axis: 0,007 mm
• Repeatability Z-axis: 0,015 mm

Tailstock

• Tailstock taper: 5 MT
• Tailstock quill diameter: 105 mm
• Tailstock quill stroke: 170 mm

Drive capacity

• Motor rating main drive: 22 kW (15 kW continuous)
• Motor rating X-axis: 2 kW
• Motor rating Z-axis: 3,6 kW
• Total power consumption: 40 kVA

Measures and weights

• Overall dimensions (L x W x H): 7,5 m x 2,25 m x 2,45 m
• Weight: 7.600 kg

Design & Options (summary)

• Hardened, ground and coated guides on a heavy flatbed for high precision with heavy parts
• Programmable spindle with automatic 3-step main gear
• Fagor control (e.g. Fagor 8058 Elite) with cycle programming and graphical simulation
• Two electronic handwheels at the control for manual operation and quick setup
• Heavy automatic 4-station servo-driven tool changer
• High-performance coolant system and automatic central lubrication included
• Options: steady rests (various ranges), chain-type conveyor, servo revolver (VDI), additional chucks, tailstock variants

Technical specifications

• Model: Forceturn 630.50
• Turning diameter over bed: 670 mm
• Max. workpiece length: 5.100 mm
• Spindle bore: 85 mm
• Spindle speed range: 27 – 2.250 1/min
• Main drive power: 22 kW (15 kW continuous)
• X-axis travel: 450 mm; Z-axis travel: 5.000 mm
• Rapid feed: 5.000 mm/min (X and Z)
• Tool magazine: 4-station servo tool changer
• Tailstock: 5 MT taper, 105 mm quill diameter, 170 mm stroke
• Positioning accuracy X/Z: 0,015 / 0,03 mm; Repeatability X/Z: 0,007 / 0,015 mm
• Overall dimensions: 7,5 m x 2,25 m x 2,45 m; Weight: 7.600 kg
