Conventional lathe Turnado 230/2000

horizontal3-axisCamlock D1-6

Product overview

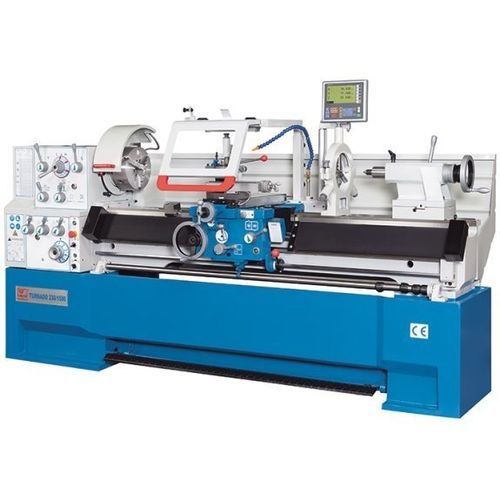

The Turnado 230/2000 is a conventional engine lathe designed for versatile industrial turning tasks. It combines a one-piece cast-iron bed with a wide working envelope and a modern 3-axis position indicator to support precise, repeatable machining operations. Standard equipment covers common workshop needs to reduce startup time for serial and job-shop production.

Highlights

• One-piece heavy cast-iron bed for long-term rigidity
• Center height 230 mm and max turning length 2,000 mm
• Max swing over bed 460 mm, swing over carriage 274 mm
• 3-axis position indicator (resolution 0.005 mm) for accurate positioning
• Comprehensive standard equipment package including chucks, steady rests and quick-change toolholder system

Design & construction
The machined bed is heavily ribbed and made from cast iron to provide a stable foundation and dampen vibrations. Guideways are prism-shaped, hardened and ground for long-lasting precision. A removable gap bridge permits machining of short workpieces with large diameters.

Headstock & spindle
The multi-step gear main drive delivers high torque across a broad spindle speed range. Gears and shafts run in an oil bath and are heat-treated and ground. The spindle support is engineered for rigidity and preload to maintain accuracy under radial and axial loads. Standard delivery includes a Ø250 mm 3-jaw self-centering chuck with reversible hard jaws, a 4-jaw independent chuck and a large-diameter faceplate.

Support (carriage / apron)
The carriage is extra-wide to absorb high cutting forces. Feed control lever and apron nut include safety interlocks. The stop spindle features four adjustable cams for automatic longitudinal feed shut-off to simplify repetitive operations. A micrometer bed stop permits precise travel limits. Central lubrication to the carriage guideways simplifies routine maintenance.

Tailstock
The tailstock quill offers a long stroke (120 mm) with a readable scale and lateral adjustment for taper turning. The quill accepts standard tooling taper (4 MT) and is suitable for drilling, reaming and centering tasks on long workpieces.

Controls & position indicator
An ergonomically placed control panel on the headstock enables quick operator familiarization. The integrated 3-axis position indicator provides ABS/INC modes, radius/diameter toggle, spindle control and functions for taper and constant cutting speed calculations to reduce setup time and scrap.

Accessories & standard equipment

• 3-axis position indicator (resolution 0.005 mm)
• Quick-change toolholder system and multiple toolholders
• 3-jaw chuck Ø250 mm (self-centering) with reversible hard jaws
• 4-jaw independent chuck Ø300 mm and faceplate Ø350 mm
• Follow and steady rests for long workpieces
• Coolant system and integrated LED work light
• Micrometer longitudinal stop, thread gauge and support for interrupted tapping
• Foot brake pedal, splash guards, tool kit and operating manual

Maintenance / service
Centralized lubrication points and oil-bath drive components reduce maintenance time. Hardened and ground gears and shafts ensure long service life; regular lubrication and scheduled inspections prolong machine availability.

Technical specifications

• Model: Turnado 230/2000
• Type: Engine lathe / conventional lathe
• Working length (max): 2,000 mm
• Center height: 230 mm
• Turning Ø over bed: 460 mm
• Turning Ø over carriage: 274 mm
• Turning Ø over gap bridge: 690 mm
• Gap bridge length: 155 mm
• Bed width: 300 mm
• Position indicator: 3-axis (X.Pos 3.2), resolution 0.005 mm
• Travel X-axis: 285 mm
• Travel Z1-axis: 128 mm
• Top slide swing: ±52°
• Spindle speeds: (12) 25 - 2,000 1/min
• Spindle bore: 58 mm
• Spindle mount: Camlock D1-6
• Spindle taper: 6 MT
• Feed X-axis: 0.014 - 0.784 mm/rev
• Feed Z-axis: 0.031 - 1.7 mm/rev
• Threading metric: 0.1 - 14 mm
• Threading diametral (DP): (50) 4 - 112 DP
• Threading module: 0.1 - 7 mm
• Threading Whitworth: (60) 2 - 112 TPI
• Tailstock quill diameter: 60 mm
• Tailstock taper: 4 MT
• Tailstock quill stroke: 120 mm
• Tailstock traverse adjustment: ±13 mm
• Main drive motor rating: 5.5 kW
• Overall dimensions (L x W x H): 3.25 m x 1.08 m x 1.34 m
• Weight: 2,100 kg
