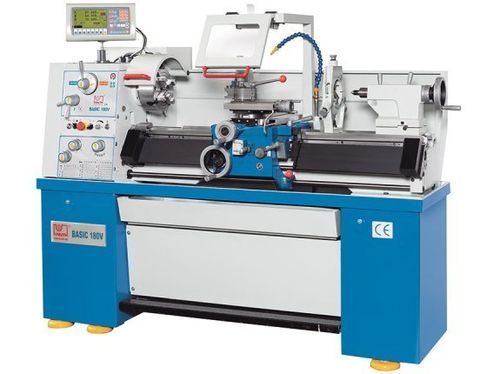

Conventional lathe Basic 180 V

horizontal3-axisCamlock D1-4

Overview
Basic 180 V is a heavy center lathe with a 206 mm bed width and approximately 30% higher overall weight than comparable machines. Its ribbed cast-iron bed improves stiffness and damping, allowing heavier cutting regimes for industrial applications. Fitted with an inverter, the spindle can run up to 3,000 rpm. The constant cutting speed function maintains uniform surface quality during facing operations.

Highlights

• Largest bed width in its machine class
• Constant cutting speed function
• High spindle speed and 4 kW main motor
• Comprehensive standard equipment for versatile use

Working area
Center width: 1,000 mm
Turning diameter over bed: 356 mm
Turning Ø over support: 220 mm
Bed width: 206 mm

Travels
Travel X-axis: 178 mm
Travel Z1-axis: 92 mm
Swing range of top slide: ± 50°

Headstock
Speed range, high: 550 1/min - 3,000 1/min
Speed range, low: 30 1/min - 550 1/min
Spindle mount: Camlock D1-4
Spindle bore: 38 mm
Spindle taper: 5 MT

Feed
Feed X-axis: 0.014 mm/R - 0.206 mm/R
Feed Z-axis: 0.043 mm/R - 0.653 mm/R

Threading
Threading (metric): (37) 0.4 - 7 mm
Threading (Whitworth): (28) 4 - 56 TPI

Tailstock
Tailstock quill diameter: 45 mm
Tailstock taper: 3 MT
Tailstock quill stroke: 120 mm
Tailstock traverse adjustment: ± 10 mm

Drive capacity
Motor rating main drive: 4 kW

Measures and weights
Overall dimensions (L x W x H): 1.95 m x 0.75 m x 1.55 m
Weight: 880 kg

Product details & features

• Ribbed cast-iron bed for stiffness and damping
• All box ways induction-hardened and precision-ground
• Headstock with D1-4 mount and 38 mm bore on adjustable tapered roller bearings
• Gears made of Cr-Ni steel, hardened and precision-ground, oil-bath lubricated
• Tailstock adjustable ±10 mm for taper turning
• Guides adjustable via tapered gibs
• Test certificate according to DIN
• 3-axis digital position indicator (digital readout) supplied assembled

Controls & software / Measurement & operation features

• 3-axis position indicator (X.pos 3.2 VC) with speed display and multiple functions
• Optical scale resolution: 0.005 mm (5 µm)
• Basic functions: spindle ON/OFF, unit conversion (inch/mm), ABS/INC coordinate switching, radius/diameter display, Z1/Z2 axis summing, calculator, set/reset position
• Extended functions: position retention with display off, bolt circle calculation, taper turning assistance, tool gauging reference
• Infinitely variable spindle speed on two gear levels and constant cutting speed adapts rpm to part radius

Specifications

• Model: Basic 180 V
• Bed width: 206 mm
• Center width: 1,000 mm
• Turning diameter over bed: 356 mm
• Turning Ø over support: 220 mm
• Spindle bore: 38 mm (Camlock D1-4)
• Spindle taper: 5 MT
• Spindle speed range: 30 - 3,000 1/min (two gear levels)
• Main motor rating: 4 kW
• Feed ranges: X 0.014 - 0.206 mm/R, Z 0.043 - 0.653 mm/R
• Threading: Metric 0.4 - 7 mm (37 options); Whitworth 4 - 56 TPI (28 options)
• Tailstock quill: Ø45 mm, stroke 120 mm, traverse ±10 mm
• Dimensions (L x W x H): 1.95 m x 0.75 m x 1.55 m
• Weight: 880 kg
