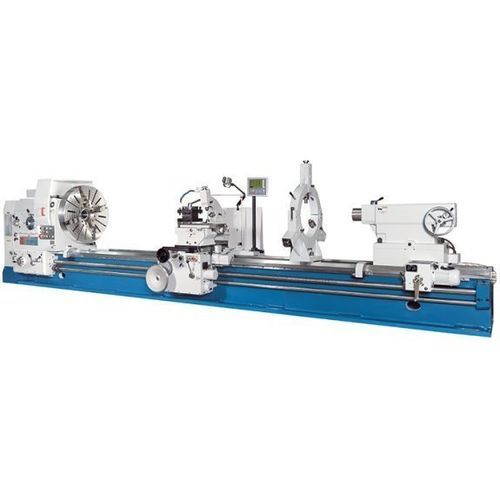

Conventional lathe DL E Heavy 620/8000

horizontal3-axis10 tools

Description
The DL E Heavy series lathes machine large diameters and long workpieces. Designed for conventional turning of parts up to 8,000 mm in length and over 1,600 mm in diameter, the machine features a wide, heavily ribbed bed that supports high workpiece weights. Powerful motors drive the main spindle via a finely adjustable multi-disc clutch. Rapid traverse in the support is effective on long beds and the heavy tailstock is motor driven.

Highlights

• Between-centers up to 8,000 mm
• 130 mm spindle bore
• 22 kW main spindle motor
• High rapid feeds in X and Z
• Supplied with assembled 3-axis position indicator

Technical Specs
Working area
Workpiece length (max.): 8.000 mm
Turning diameter over bed: 1.250 mm
Turning diameter over support: 900 mm
Workpiece weight (max.): 6.000 kg
Bed width: 755 mm
Max. weight between centers: 6.000 kg
Max. weight on chuck: 1.500 kg

Travels
Travel X-axis: 630 mm
Travel Z-axis: 7.800 mm
Travel Z1-axis: 300 mm
Top slide swing: ± 180°

Headstock
Spindle speeds (right): 3.15 1/min - 315 1/min
Spindle speeds (left): 4 1/min - 315 1/min
Spindle bore: 130 mm
Spindle mount: ISO A2-15

Rapid feed
Rapid feed X-axis: 1.870 mm/min
Rapid feed Z-axis: 3.740 mm/min

Feed
Feed X-axis: 0.064 mm/R - 12 mm/R
Feed Z-axis: 0.032 mm/R - 6 mm/R
Feed Z1-axis: 0.016 mm/R - 3 mm/R

Threading
Metric: 1 mm - 120 mm
Diametral: (42) 30 - 1/4 DP
Module: 0.5 mm - 60 mm
Whitworth: (48) 0.5 - 60 TPI

Tailstock
Quill diameter: 160 mm
Quill taper: metric 80
Quill stroke: 300 mm
Tailstock traverse adjustment: ± 2.5 mm

Drive capacity
Motor rating main drive: 22 kW

Measures and weights
Overall dimensions (L x W x H): 11.1 m x 1.88 m x 1.92 m
Weight: 16.800 kg

Product Details

• 22 kW motor for high cutting power
• Heavy cast-iron body with ribbed bed to minimize vibration
• Induction-hardened and ground guideways
• Sturdy multi-disk clutch for headstock drive
• Separate rapid feed motor for X and Z
• Joystick control for X and Z feeds mounted on the support
• Motorized tailstock position (models with min. center width 3000 mm)
• Large spindle bearings
• Comes with assembled 3-axis position indicator
• Overload clutch enclosed in apron

3-axis position indicator (functions)

• Higher accuracy and reduced error rate
• Resolution: 0.01 / 0.005 mm
• Coordinates retained when display off
• Hole circle calculation and calculator function
• Storage for 10 tools, radius/diameter toggle, mm/inch conversion
• Clear display and ergonomic keyboard

Standard Equipment

• 3-axis position indicator X.Pos 3.2
• 4-jaw face plate chuck Ø 1000 mm (independent, with one set of hard jaws)
• Coolant system
• Follow rest 50-220 mm
• Steady rest 50-590 mm
• Motorised tailstock
• LED work lamp
• Center points
• Reducing sleeve
• Foundation bolts
• Central lubrication
• Operating tools
• Operating manual

Optional Equipment

• Steady rest 220-630 mm
