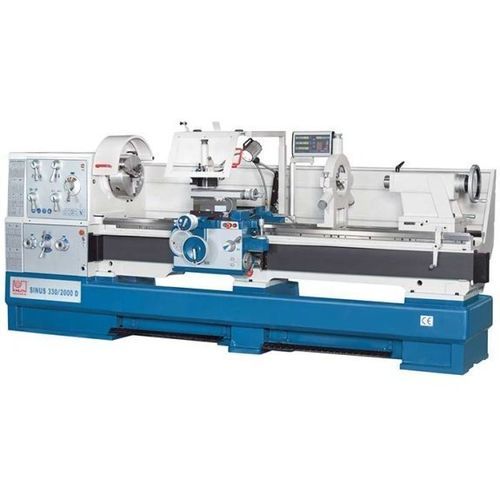

Conventional lathe Sinus 330/2000 D

horizontaluniversalD1-8

Description
Sinus D is the largest series in the universal lathes segment. It is built on a heavy one-piece cast bed and uses a manual multi-plate clutch between motor and spindle. Integrated features such as a removable bed bridge, rapid traverse and a taper-turning device make the series suitable for long workpieces and large flanges.

Highlights

• One-piece heavy-duty cast bed for increased rigidity
• Sturdy headstock with large spindle bearings and 105 mm spindle bore
• Rapid traverse on two axes for fast positioning
• Taper turning attachment for internal and external tapers
• Comprehensive safety and overload protections

Working area
Workpiece length (max.): 2.000 mm
Turning diameter over bed: 660 mm
Turning diameter over support: 440 mm
Turning diameter without gap bridge: 900 mm
Gap bridge length: 320 mm
Bed width: 400 mm

Travels
Travel X-axis: 368 mm
Travel Z1-axis: 230 mm
Swing range of top slide: 45°

Headstock
Spindle speed: 25 1/min - 1.600 1/min
Spindle bore: 105 mm
Spindle mount: D1-8
Spindle taper: ø 113 mm / 1:20

Rapid feed
Rapid feed X-axis: 2.000 mm/min
Rapid feed Z-axis: 4.000 mm/min

Feed
Feed X-axis: 0,022 mm/R - 0,74 mm/R
Feed Z-axis: 0,044 mm/R - 1,48 mm/R

Threading
Threading, metric: 0,45 mm - 120 mm
Threading, diametral: 0,88 DP - 160 DP
Threading, module: 0,25 mm - 60 mm
Threading, Whitworth: (54) 7/16 - 80 TPI

Tailstock
Tailstock quill diameter: 90 mm
Tailstock taper: 5 MT
Tailstock quill stroke: 235 mm
Tailstock traverse adjustment: ± 12,5 mm

Drive capacity
Motor rating main drive: 7,5 kW

Measures and weights
Overall dimensions (L x W x H): 3,71 m x 1,23 m x 1,6 m
Weight: 2.900 kg

Machine bed

• Maximum stability: heavy one-piece cast base to suppress vibrations
• Long-lasting accuracy: bed guideways induction-hardened and ground (≥ HB 400)

Headstock and feed gear

• Construction ensures high accuracy and smooth running under heavy cuts
• Large spindle bore (105 mm) for shafts and pipes
• Mechanical multi-plate clutch for controlled spindle start-up

Support

• Movable steady rest in longitudinal and transverse rapid traverse to reduce non-productive time
• Integrated overload protection for feed screw and lead screw
• Lead screw covered to minimise chip and dirt ingress

Tailstock

• Robust, easy-to-read quill scale
• Long quill stroke for drilling and centering operations
• Lateral adjustment for machining tapered shafts between centers

Equipment and accessories (standard / included)

• Central lubrication system on the support for all guideways
• Taper turning device (standard) for long/slim tapers with automatic longitudinal feed
• Quick change between cylindrical and taper turning without retracting top slide or tailstock
• Foot brake pedal and large stable rear splash guard
• Bright LED lighting integrated into the support cover
• Multifunction quick-change tool holder system with change cassette (standard)
• Fixed and travelling steady rest (standard)
• Latest-generation position indicators (standard)
• Coolant system and comprehensive operating tools included

Characteristics / technical specifications

• Model: Sinus 330/2000 D
• Category: Engine Lathe (conventional)
• Workpiece length (max.): 2.000 mm
• Turning diameter over bed: 660 mm
• Turning diameter over support: 440 mm
• Turning diameter without gap bridge: 900 mm
• Bed width: 400 mm
• X travel: 368 mm
• Z1 travel: 230 mm
• Top slide swing: 45°
• Spindle speed range: 25 – 1.600 1/min
• Spindle bore: 105 mm
• Spindle mount: D1-8
• Main motor: 7,5 kW
• Rapid feeds: X 2.000 mm/min, Z 4.000 mm/min
• Feeds: X 0,022–0,74 mm/R, Z 0,044–1,48 mm/R
• Threading ranges: metric 0,45–120 mm; diametral 0,88–160 DP; module 0,25–60 mm; Whitworth (54) 7/16–80 TPI
• Tailstock quill: Ø 90 mm, stroke 235 mm, taper 5 MT
• Overall dimensions: 3,71 m x 1,23 m x 1,6 m
• Weight: 2.900 kg
