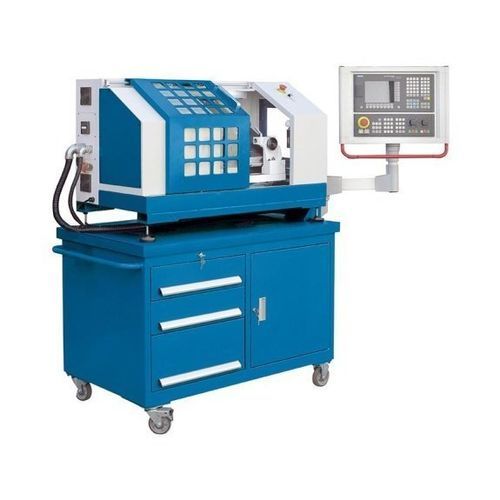

CNC lathe LabTurn 2028 CNC

horizontal2-axisslant bed

Product Overview
The LabTurn 2028 CNC is a compact, mobile CNC lathe designed for CNC training and small-series production. It reproduces the main functions of a full-size production lathe in a space-saving footprint. The 8-station tool turret provides four tools each for internal and external turning; a tailstock enables machining of longer parts. The main spindle runs up to 3,000 rpm and the hydraulic 3-jaw chuck measures Ø100 mm. The Siemens 808D Advance controller offers simple, intuitive operator guidance ideal for learning and entry-level CNC applications.

Highlights

• Siemens 808D Advance CNC controller for training and introductory production
• 8-station turret for internal and external machining (4 tools per function)
• Linear guides and preloaded ball screws on all axes
• Enclosed workspace with large sliding door
• Mobile base with integrated storage

Machine Design

• Inclined-bed cast-iron construction for stability and efficient chip removal
• Enclosed machining area with good accessibility via sliding door
• Centralized lubrication to reduce maintenance

Spindle

• Hydraulic 3-jaw chuck Ø100 mm (standard)
• Spindle speed range: 100 – 3,000 rpm
• Spindle bore: 20 mm, spindle nose: MK 3

Tooling

• 8-station turret with 4 tool positions per station for internal and external turning
• Typical tool shank: 8 mm x 8 mm; boring bar mount Ø 12 mm

Controls & Software

• Siemens 808D Advance: intuitive interface suitable for training and simple production tasks

Standard Equipment (selected)

• Siemens 808D Advance control
• Electronic handwheel
• 8-station turret
• Mobile base
• Tailstock (MK 2 quill)
• 3-jaw chuck Ø100 mm
• Central lubrication
• Work lamp, basic operating tools, manuals

Matching / Optional Accessories (examples)

• Indexable insert sets
• Turning tool set (7 pcs) 8 x 8 mm
• Live centers (various MT sizes)
• Chip removal and workshop equipment

Technical specifications

• Model: LabTurn 2028 CNC
• Workpiece length (max.): 280 mm
• Turning diameter over bed: 200 mm
• Turning Ø over support: 90 mm
• Travel X-axis: 86 mm
• Travel Z-axis: 155 mm
• Spindle speed range: 100 – 3,000 rpm
• Spindle bore: 20 mm
• Spindle mount: MK 3
• Lathe chuck diameter: 100 mm
• Rapid feed: 2,000 mm/min
• Feed speed: 1,000 mm/min
• Max. torque feed motor: 2.2 Nm
• Number of tool stations: 8 (turret)
• Tool shank dimensions: 8 mm x 8 mm
• Boring bar mount Ø: 12 mm
• Positioning accuracy X/Z: 0.022 mm
• Repeatability X/Z: 0.01 mm
• Tailstock quill diameter: 20 mm; stroke: 30 mm; taper: MK 2
• Main drive motor rating: 1 kW
• Overall dimensions (L x W x H): 1.4 m x 0.9 m x 1.85 m
• Weight: 500 kg
