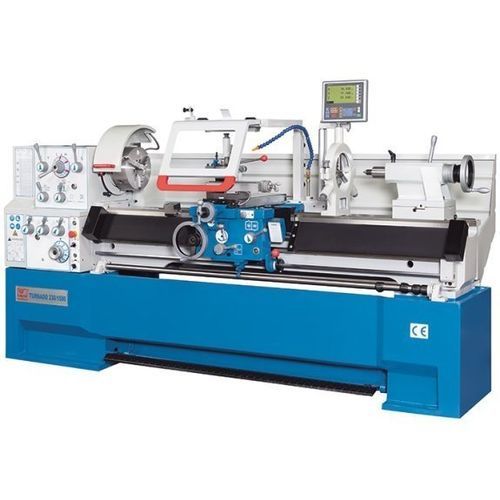

Conventional lathe Turnado 230/1000

horizontal3-axisuniversal

Overview
Turnado 230/1000 is a conventional universal lathe designed for flexible turning, drilling and threading operations. It combines a one-piece cast-iron bed, a 3‑axis position indicator and a wide spindle bore to accommodate shafts and tubes. The machine is supplied with an extensive standard equipment package to cover common workshop requirements.

Highlights

• Universal lathe configuration with 230 mm centre height and 1,000 mm between centres
• One-piece cast-iron bed with prismatic guideways, hardened and ground
• 3-axis position indicator for incremental and absolute measurements
• Large spindle bore (58 mm) and Camlock D1-6 spindle mount
• Motor rating 5.5 kW; wide spindle speed range (25–2,000 1/min)

Machine bed

• Heavy ribbed one-piece bed and massive cast-iron stand provide a stable base for precision machining
• Removable gap bridge allows machining of short workpieces with large diameters
• Prismatic guideways are hardened and ground to maintain long-term positional accuracy

Headstock / feed gear

• Multi-step gearbox and 5.5 kW main motor deliver the required torque across a broad speed range
• Gears and shafts are hardened and ground, operating in an enclosed oil bath
• Large spindle bore and robust spindle support ensure reliable clamping and stability under radial/axial loads
• Standard equipment includes 3-jaw chuck (with reversible hardened jaws), 4-jaw independent chuck and large faceplate
• Feed gearbox provides numerous thread pitches for metric and Whitworth threads

Support

• Extra-wide carriage design to withstand high cutting forces
• Feed selection lever and apron nut include automatic safety interlock
• Spindle stop with four adjustable cams for automatic longitudinal feed shut-off
• Micrometer bed stop and preset positions simplify repetitive operations
• Centralized lubrication on the carriage supplies all guideways
• Large swiveling safety cover on the carriage keeps the work area clean and protected

Tailstock

• Tailstock quill with clear scale and 120 mm travel for deep drilling and centring tasks
• Lateral adjustment ±13 mm for machining of tapered shafts between centres

Accessories (standard)

• Brake pedal and large rear splash guard
• LED work light integrated in the carriage cover
• Multi-functional quick-change toolholder system with cartridge
• Steady and live rests for long workpieces
• Coolant system and basic tooling set included
• 3‑axis position indicator (latest generation) supplied as standard

Technical specifications

• Working area: max. workpiece length 1,000 mm; turning Ø over bed 460 mm; turning Ø over carriage 274 mm; turning Ø over gap bridge 690 mm; gap bridge length 155 mm; bed width 300 mm; centre height 230 mm
• Travels: X-axis 285 mm; Z1-axis 128 mm; top slide swivel ±52°
• Headstock: spindle speeds (12) 25–2,000 1/min; spindle bore 58 mm; spindle mount Camlock D1-6; spindle taper 6 MT
• Feeds: X-axis 0.014–0.784 mm/rev; Z-axis 0.031–1.7 mm/rev
• Threading: metric 0.1–14 mm; diametral (50) 4–112 DP; module 0.1–7 mm; Whitworth (60) 2–112 TPI
• Tailstock: quill diameter 60 mm; quill taper 4 MT; quill travel 120 mm; traverse ±13 mm
• Drive: main motor rating 5.5 kW
• Dimensions & weight: 2.2 m x 1.08 m x 1.34 m (L x W x H); weight 1,720 kg
