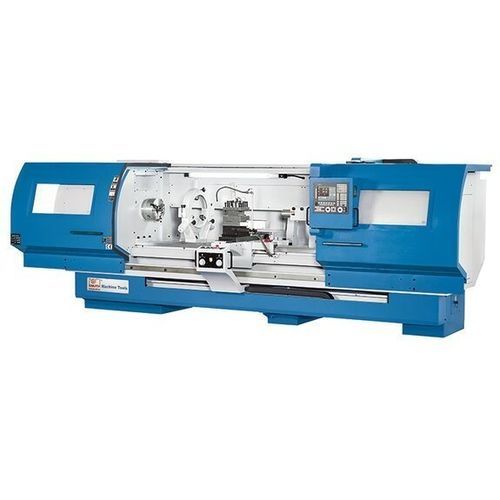

CNC lathe Forceturn 800.50

horizontal2-axisflatbed

Product description
The Forceturn 800.50 series is a heavy-duty CNC lathe platform designed for machining large, heavy workpieces up to 5100 mm. The rigid flat-bed construction and oversized hardened guides ensure high static and dynamic stiffness for accurate turning operations. The Fagor control provides intuitive cycle programming and teach-in functions; two electronic handwheels permit manual-style setup and fine positioning. Configurable options allow adaptation for maintenance shops and single-piece production.

Highlights

• Powerful main drive for heavy cutting operations
• Servo-driven 4-station tool changer for programmed tool changes
• Two electronic handwheels for manual operation and setup
• Cycle programming and graphical simulation for series production

Machine design / Features

• Large, hardened, ground and counter-coated guides in the machine bed for high rigidity and accuracy
• Main drive dimensioned for part weights up to approx. 1700 kg
• High-performance coolant system and automatic central lubrication included
• Spindle bore variants available (85 mm for smaller models; 105 mm for model 800)
• Infinitely variable, programmable spindle speeds with automatic 3-step main gear
• Main drive motor ratings: 22 kW (peak) / 15 kW (continuous)
• Heavy-duty automatic 4-station servo toolholder

Working area
Turning diameter over bed: 818 mm
Bed width: 450 mm
Center height: 420 mm
Turning diameter over carriage: 570 mm
Maximum workpiece length: 5100 mm

Travels
X-axis travel: 450 mm
Z-axis travel: 5000 mm

Headstock
Speed range: 20 rpm – 1500 rpm
Spindle mount: A1-11
Spindle bore: 105 mm

Rapid feed
Rapid feed X-axis: 5000 mm/min
Rapid feed Z-axis: 5000 mm/min

Tooling
Number of tool stations: 4 positions (servo-driven changer)

Accuracies
Positioning accuracy X-axis: 0.015 mm
Positioning accuracy Z-axis: 0.03 mm
Repeatability X-axis: 0.007 mm
Repeatability Z-axis: 0.015 mm

Tailstock
Tailstock taper: MT5
Tailstock quill diameter: 105 mm
Tailstock quill stroke: 170 mm

Drive capacity
Main drive motor rating: 22 kW (15 kW continuous)
X-axis motor: 2 kW
Z-axis motor: 3.6 kW
Total power consumption: 40 kVA

Dimensions and weight
Overall dimensions (L x W x H): 7.5 m x 2.25 m x 2.45 m
Weight: 8000 kg

Additional product details

• Fagor control with Profile Editor and graphical simulation for safe setup
• Two electronic handwheels on the control panel for fast manual setup
• Standard examples: Fagor 8058 Elite control, 3-jaw chuck Ø300 mm, coolant system, central lubrication, work lamp
• Interfaces: USB and swivelling operating unit for convenient data transfer

Technical specifications

• Model: Forceturn 800.50
• Manufacturer / Brand: KNUTH
• Turning diameter over bed: 818 mm
• Bed width: 450 mm
• Center height: 420 mm
• Turning diameter over carriage: 570 mm
• Maximum workpiece length: 5100 mm
• X-axis travel: 450 mm
• Z-axis travel: 5000 mm
• Spindle speed range: 20 – 1500 rpm
• Spindle mount: A1-11
• Spindle bore: 105 mm
• Rapid feed X/Z: 5000 mm/min
• Tool stations: 4 positions (servo-driven)
• Positioning accuracy X/Z: 0.015 mm / 0.03 mm
• Repeatability X/Z: 0.007 mm / 0.015 mm
• Tailstock: MT5 / quill Ø 105 mm / stroke 170 mm
• Main drive power: 22 kW (15 kW continuous)
• Total power consumption: 40 kVA
• Dimensions (L x W x H): 7.5 m x 2.25 m x 2.45 m
• Weight: 8000 kg
