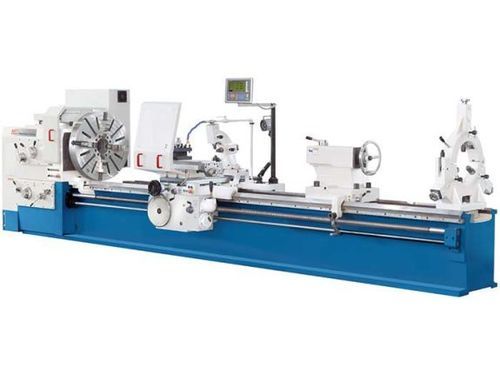

Conventional lathe DL S 515/3000

horizontal3-axisflatbed

Overview
The DL S 515/3000 is a conventional heavy-duty lathe designed for large-diameter turning and long workpieces. It is suitable for machining workpieces up to 3,000 mm in length and for turning diameters over the bed up to 1,000 mm. A wide, heavily ribbed mono-block bed supports high part weights while maintaining rigidity and long-term accuracy.

Highlights

• Max workpiece length: 3,000 mm
• Spindle bore: 100 mm
• Main drive: 22 kW
• Spindle speed adjustable in 4 steps
• Rapid feeds on X and Z axes
• Supplied with assembled 3-axis position indicator

Key product details

• Extra-heavy, wide mono-block machine bed with deep ribbing for high stiffness
• Induction-hardened and ground guideways for long-term precision and minimal wear
• Massive headstock with high-precision spindle on tapered roller bearings (A2-11)
• Manually shifted 4-step gearbox combined with frequency control for precise rpm tuning and high torque
• Joystick control for X and Z feeds mounted directly on the support
• Adjustable overload clutch in the apron protects feed mechanics
• Support and top slide sized for high cutting forces
• Wide range of thread leads: diametral, inch, module and metric

Standard equipment

• 3-axis position indicator X.Pos 3.2
• Ø 1000 mm independent 4-jaw face plate chuck (with one set of hard jaws)
• 4-station tool holder (45×45 section)
• Steady rest 50–470 mm
• Follow rest 30–120 mm
• Dead centres and reducing sleeve
• Chuck guard with interlock
• Toolpost protective shield
• Coolant system, foundation bolts, work lamp
• Operating tools and manual

Technical specs
Working area
Workpiece length (max.): 3.000 mm
Turning diameter over bed: 1.000 mm
Turning Ø over support: 720 mm
Turning diameter over gap bridge: 1.350 mm
Workpiece weight (max.): 4.000 kg
Gap bridge length: 470 mm
Bed width: 600 mm

Travels
Travel X-axis: 520 mm
Travel Z-axis: 2.700 mm
Travel Z1-axis: 250 mm
Swing range of top slide: 90°

Headstock
Spindle speed: 5 1/min - 630 1/min
Spindle bore: 100 mm
Spindle mount: A2-11

Rapid feed
Rapid feed X-axis: 1.800 mm/min
Rapid feed Z-axis: 3.640 mm/min

Feed
Feed speed X-axis: 0,04 mm/min - 4,8 mm/min
Feed speed Z-axis: 0,08 mm/min - 9,6 mm/min
Feed speed Z1-axis: 0,02 mm/min - 2,4 mm/min

Tooling
Tool shank dimensions: 32 mm x 32 mm

Threading
Threading, metric: (53) 1-120 mm
Threading - inch: (49) 30 - 1/4
Threading, diametric: (56) 60-0,5 DP
Threading, module: (54) 0,5 - 60 mm

Tailstock
Tailstock quill diameter: 120 mm
Tailstock taper: 6 MT
Tailstock quill stroke: 250 mm

Drive capacity
Motor rating main drive: 22 kW
Motor rating coolant pump: 0,15 kW
Motor rating feed: 1,1 kW
Total power consumption: 23 kVA

Measures and weights
Overall dimensions (L x W x H): 5,15 m x 1,5 m x 1,6 m
Weight: 6.800 kg

Main characteristics / quick specs

• Model: DL S 515/3000
• Max workpiece length: 3.000 mm
• Turning Ø over bed: 1.000 mm
• Spindle bore: 100 mm
• Spindle speed range: 5 – 630 1/min (4 steps)
• Main drive motor: 22 kW
• Rapid feed X/Z: 1.800 / 3.640 mm/min
• Travel X/Z: 520 mm / 2.700 mm
• Tool shank: 32 x 32 mm
• Tailstock quill: 120 mm, MT6, stroke 250 mm
• Overall dimensions: 5,15 m x 1,5 m x 1,6 m
• Weight: 6.800 kg
