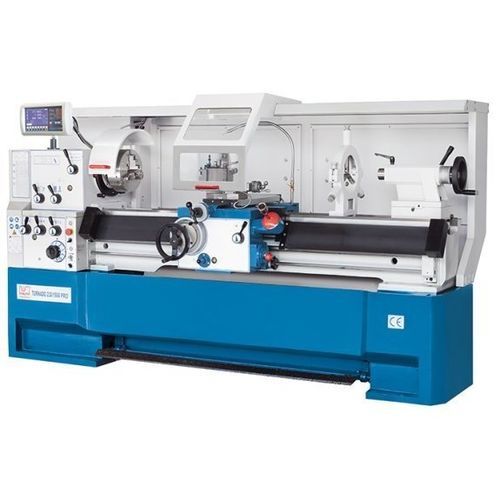

Conventional lathe Turnado 230/1500 PRO

horizontalrigidCamlock D1-6

Product description
The Turnado PRO series represents the modern version of the conventional center lathe. PRO models combine a wide inverter-controlled speed range with constant cutting speed (V-constant), fast traverses and an ergonomic enclosure to deliver productive, high-quality turning for general industrial applications. Designed for ease of use and long-term operation, these machines suit workshops requiring reliable conventional turning and high surface quality.

Highlights

• Inverter-controlled, infinitely variable spindle speed with V-constant
• Apron with rapid-feed motor for fast longitudinal/transverse moves
• Extensive standard equipment and low-maintenance design
• Rigid cast-iron bed and one-piece stand for high stiffness

Product details

• SKU: 320563
• Removable gap bridge enables machining of short workpieces with large diameters
• Back-gearing and advanced electronic control provide high torque across a wide speed range
• Preloaded high-precision spindle bearings for superior concentricity and load capacity
• All guideways are adjustable; gears, shafts and guideways are hardened and ground for quiet operation and long life
• Apron runs in an oil bath for reduced maintenance
• Centralized lubrication inside the apron supplies all guideways and simplifies maintenance
• Micrometer bed stop ensures high repeatability on the Z axis
• Tailstock adjustable sideways for taper turning
• X.Pos position indicator with digital speed display and programmable auxiliary functions

Technical specifications

• Working area
  Between centres: 1500 mm
  Centre height: 230 mm
  Turning Ø over bed: 460 mm
  Turning Ø over gap bridge: 690 mm
  Turning Ø over support: 274 mm
  Gap bridge length: 155 mm
  Bed width: 300 mm
• Travels
  Travel X-axis: 285 mm
  Travel Z1-axis: 128 mm
  Swing range of top slide: ±52°
• Headstock
  Speed range low: 30 1/min - 600 1/min
  Speed range high: 600 1/min - 2,300 1/min
  Spindle bore: 58 mm
  Spindle mount: Camlock D1-6
  Spindle taper: 6 MT
• Feed
  Feed X-axis: 0.025 mm/rev - 1.384 mm/rev
  Feed Z-axis: 0.055 mm/rev - 3.061 mm/rev
• Threading
  Metric: 0.1 mm - 14 mm
  Diametral: (50) 4-112 DP
  Module: 0.1 mm - 7 mm
  Whitworth: (60) 2-112 TPI
• Tailstock
  Quill diameter: 60 mm
  Tailstock taper: MK 4
  Quill stroke: 120 mm
  Tailstock traverse adjustment: ±13 mm
• Drive capacity
  Main drive motor rating: 7.5 kW
• Measures and weights
  Overall dimensions (L x W x H): 2.75 m x 1.08 m x 1.57 m
  Weight: 1,970 kg

Accessories and standard equipment

• Typical standard supply: chucks, fixed and follow rests, adjustable guard, coolant unit, LED lamp, service tools, operating manual
