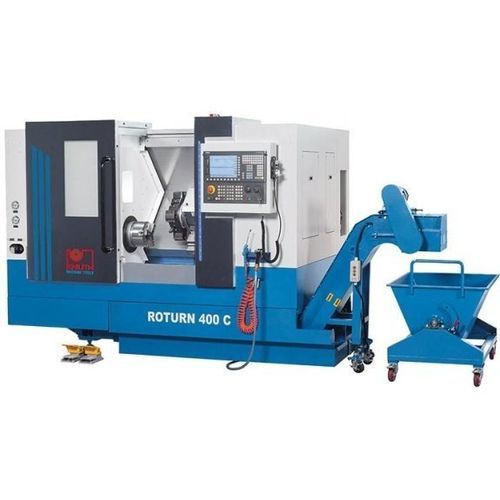

CNC lathe Roturn 400 C

horizontal2-axisslant bed

Product overview
The ROTURN 400 C is an inclined-bed CNC production lathe equipped with Siemens 828 D Basic control. It features an 8-station tool turret, a 15 kW (20 hp) main spindle motor, a hydraulic 3-jaw chuck with through-hole and a hydraulically operated tailstock quill with 85 mm stroke. A hinged flat-top chip conveyor and a high-performance coolant system are supplied as standard.

Highlights

• 15 kW main spindle motor
• 8-station tool turret
• Hydraulic 3-jaw chuck with through-hole (200 mm)
• Siemens 828 D Basic control
• Flat-top chip conveyor and coolant system included

Machine design

• Heavy inclined-bed frame for high rigidity and effective chip evacuation
• Precision linear guides on X and Z axes for stability and accuracy under load
• Enclosed workspace with large sliding door for easy access
• Automatic central lubrication for reliable guideway lubrication

Spindle

• Max spindle speed: 3,000 min⁻¹ (Roturn 400 C)
• Motor power: 15 / 11 kW (15 kW noted as main spindle motor)
• Spindle mount: A2-6
• Spindle bore: 62 mm (46 mm with draw tube)

Tooling & Turret

• 8-station turret for fast, precise tool indexing
• Tool shank size: 25 x 25 mm
• Boring bar mount diameter: 40 mm

Tailstock

• Tailstock taper: 5 MT
• Quill diameter: 88 mm
• Hydraulically operated quill stroke: 85 mm

Standard equipment (selected)

• Siemens 828 D Basic control
• Hydraulic 3-jaw chuck Ø 200 mm with through-hole
• Hydraulic tailstock
• Automatic central lubrication
• Hinged flat-top chip conveyor and trolley
• Coolant system with flush gun
• LED work lamp, operator manual and operating tools

Other functional features

• Rapid feed X-axis: 16,000 mm/min
• Rapid feed Z-axis: 20,000 mm/min
• Coolant pump motor: 0.18 kW

Dimensions / Mass

• Overall (L x W x H): 3.8 m x 1.87 m x 1.91 m
• Weight: 3,340 kg

Technical specifications (extract)
Working area
Max. workpiece length: 430 mm
Center height: 200 mm
Turning diameter over bed: 400 mm
Turning diameter over support: 250 mm

Travels
Travel X-axis: 200 mm
Travel Z-axis: 450 mm

Headstock / Spindle
Chuck diameter: 200 mm
Speed range: 50 min⁻¹ - 3,000 min⁻¹
Spindle mount: A2-6
Spindle bore: 62 mm (46 mm with draw tube)

Tooling
Number of tool stations: 8
Tool shank: 25 x 25 mm
Boring bar mount Ø: 40 mm

Tailstock
Taper: 5 MT
Quill diameter: 88 mm
Quill stroke: 85 mm

Drive ratings
Main motor rating: 15 / 11 kW
Coolant pump: 0.18 kW
